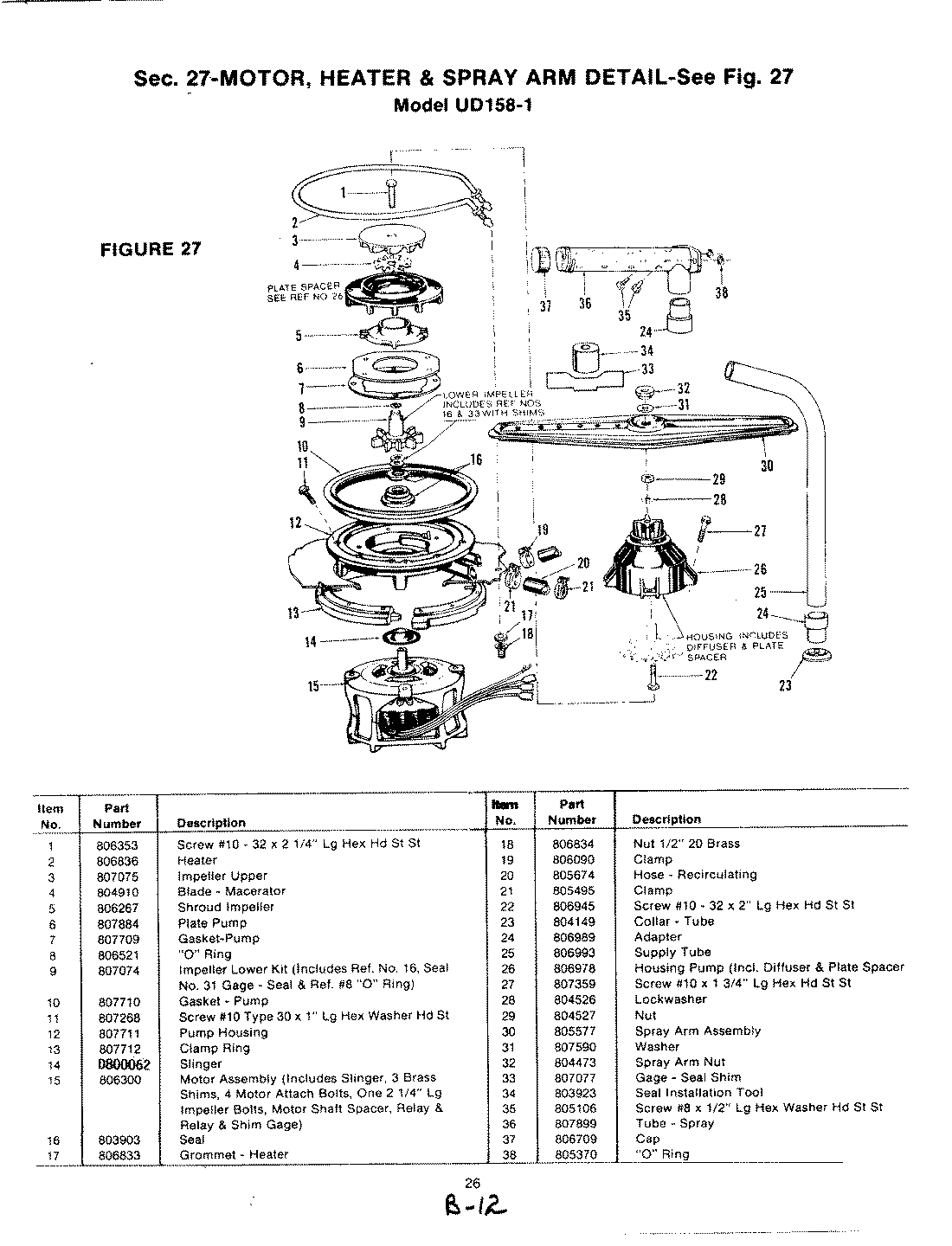

UD158-1 06 – HEATER & SPRAY ARM DETAIL (UD158-1)

Products

Position	Product
1	MAY 806353
2	HEATER KIT
3	MAY 807075
4	MAY 804910
5	SHROUD
6	PUMP PLATE
7	GASKET
8	O RING
9	MAY 807074
10	MAY 807710
11	MAY 807268
12	PUMP HOUSING
13	CLAMP RING
14	MAY D800062
15	MOTOR
16	GASKET
17	GROMMET
18	NUT
19	CLAMP
20	MAY 805674
21	CLAMP
22	MAY 806945
23	MAY 804149
24	MAY 806989
25	MAY 806993
26	PUMPHOUSING KIT
27	SCREW
28	MAY 804526
29	MAY 804527
30	LWR SPRAY ARM
31	WASHER
32	MAY 804473
33	SHIM GAUGE
34	SEAL TOOL
35	SCREW
36	MAY 807899
37	MAY 806709
38	MAY 805370
