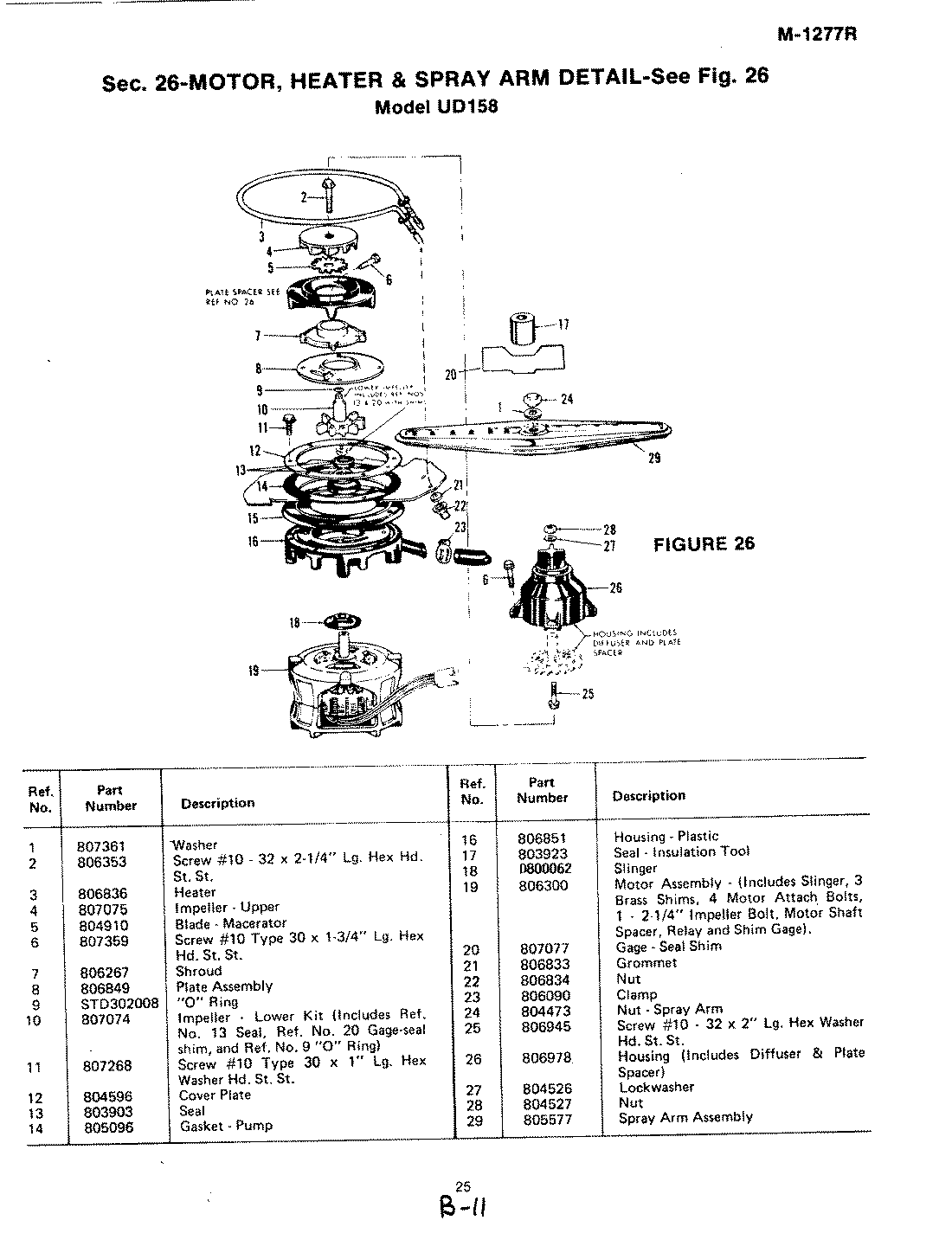

UD158-1 07 – MOTOR, HEATER & SPRAY ARM

UD158-1 07 – MOTOR, HEATER & SPRAY ARM

Written by

in

UD158-1 07 – MOTOR, HEATER & SPRAY ARM

Products

Position	Product
2	MAY 806353
3	HEATER KIT
4	MAY 807075
5	MAY 804910
6	SCREW
7	SHROUD
8	MAY 806849
9	MAY 807074
10	MAY 807268
11	MAY 804596
12	MAY 806906
13	MAY 805096
14	MAY 806851
15	SEAL TOOL
16	MAY D800062
17	MOTOR
18	SHIM GAUGE
19	GROMMET
20	NUT
21	CLAMP
22	MAY 804473
23	MAY 806945
24	PUMPHOUSING KIT
25	MAY 804526
26	MAY 804527
27	LWR SPRAY ARM
