UD358 03 – DOOR DETAILS – Aparts

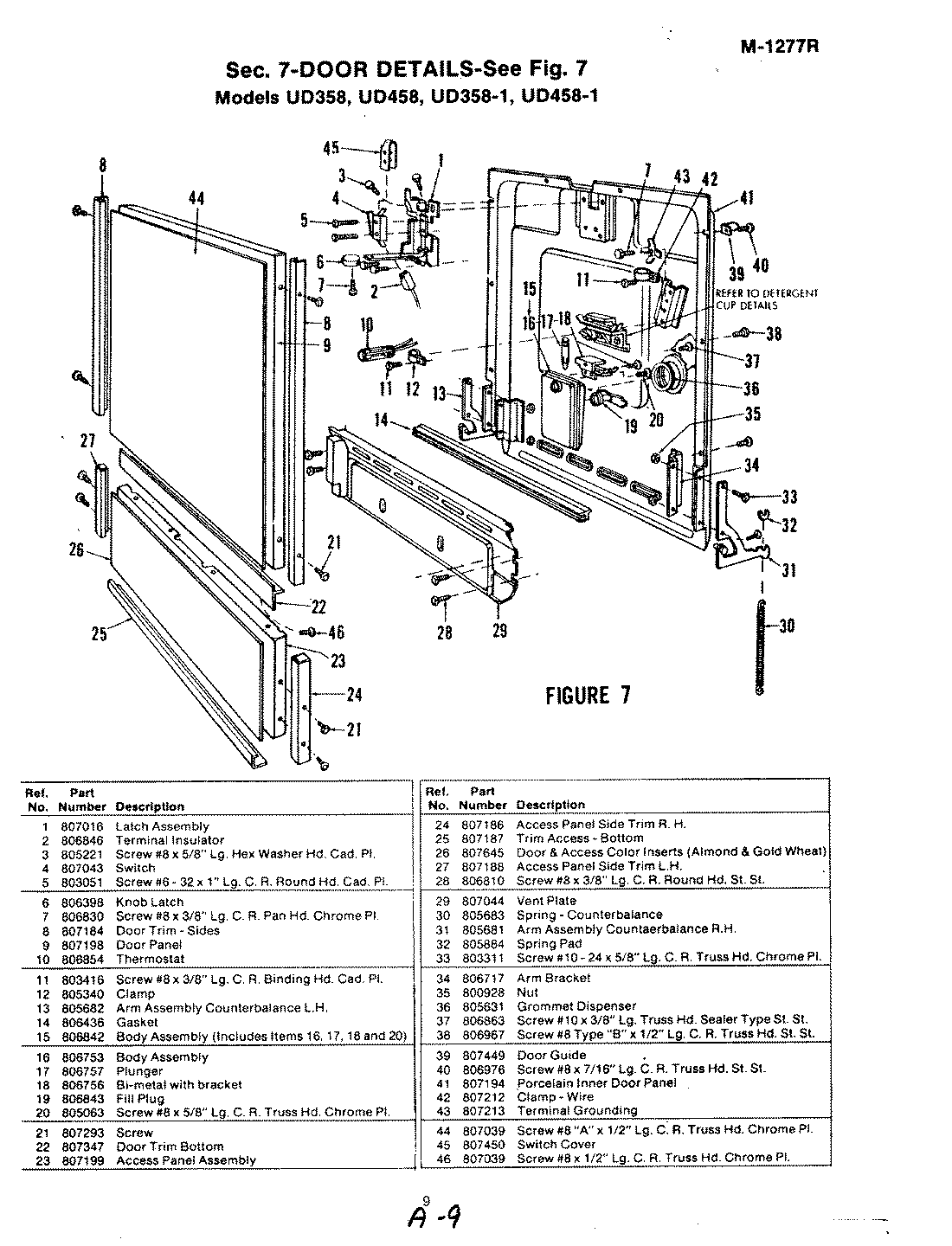

UD358 03 – DOOR DETAILS

Products

Position	Product
1	LATCH ASM
2	INSULATOR
3	MAY 805221
4	MAY 807043
5	MAY 803051--
6	MAY 806398
7	SCREW
8	MAY 807184
9	MAY 807198
10	MAY 806854
11	SCREW
12	MAY 805340
13	LH ARM
14	MAY 806436
15	MAY 806842
16	DISPENSER
17	MAY 806757
18	BRACKET
19	MAY 806843
20	MAY 805063
21	MAY 807293
22	DOOR TRIM
23	MAY 807199
24	MAY 807186
25	MAY 807187
26	INSERT, DOOR PANEL
27	MAY 807188
28	SCREW
29	MAY 807044
30	DOOR SPRING
31	RH ARM
32	SPRING PAD
33	MAY 803311
34	ARM BRACKET
35	MAY 800928
36	GROMMET
37	SCREW
38	SCREW
39	DOOR GUIDE
40	MAY 806976
41	INNER PANEL
42	MAY 807212
43	GROUND TERMINAL
45	SWITCH COVER
46	MAY 807039
