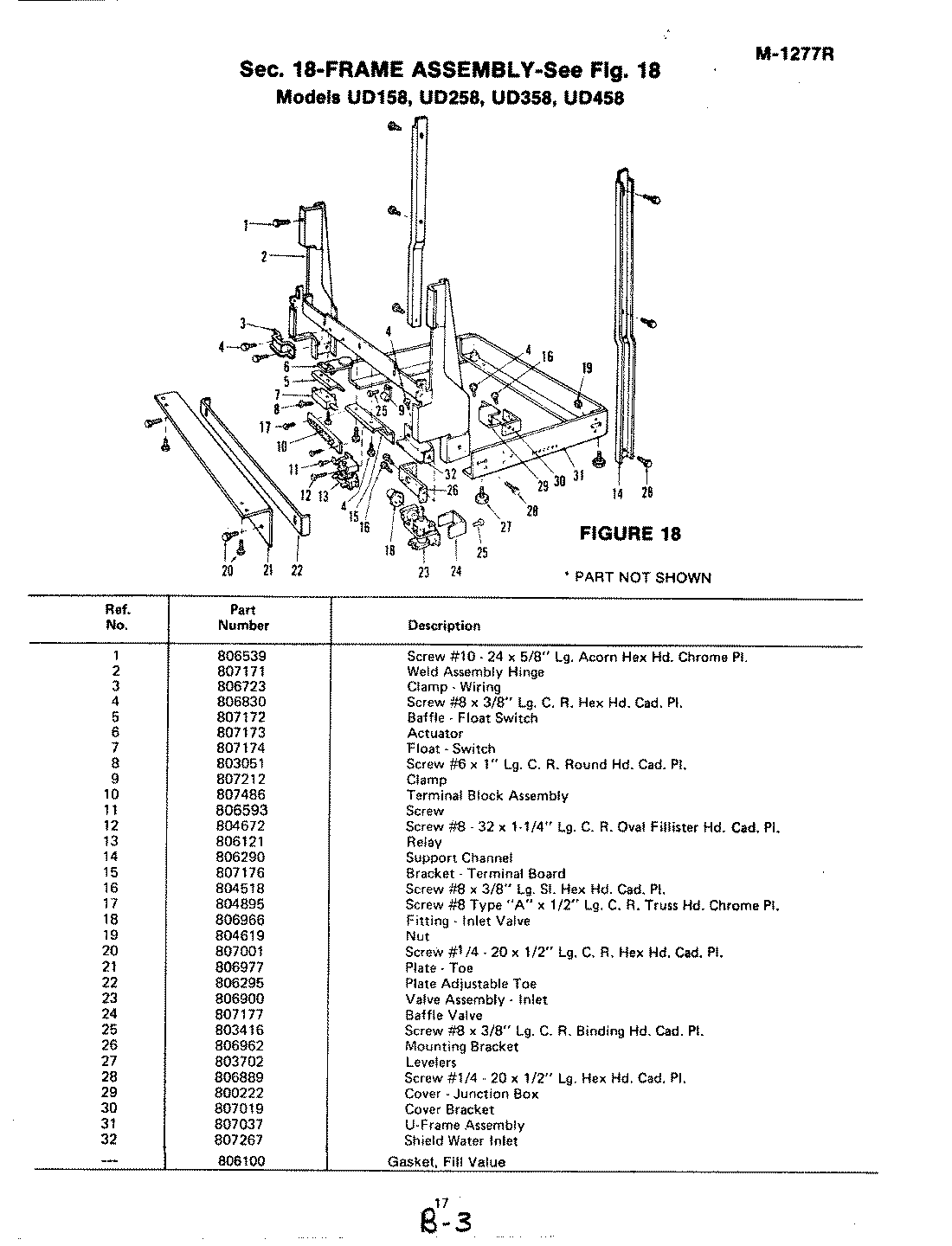

UD358 04 – FRAME ASSEMBLY (UD358)

Products

Position	Product
1	MAY 806539
2	MAY 807171
3	CLAMP
4	SCREW
5	MAY 807172
6	MAY 807173
7	MAY 807174
8	MAY 803051--
9	MAY 807212
10	MAY 807486
11	MAY 806593
12	MAY 804672
13	SUB 805255
14	CHANNEL
15	MAY 807176
16	SCREW
17	MAY 804895
18	MAY 806966
19	MAY 804619
20	SCREW
21	MAY 806977
22	TOE PLATE
23	MAY 806900
24	MAY 807177
25	SCREW
26	MAY 806962
27	MAY 803702
28	MAY 806889
29	TERMINAL COVER
30	BRACKET
31	MAY 807037
32	MAY 807267
32	MAY 806100
