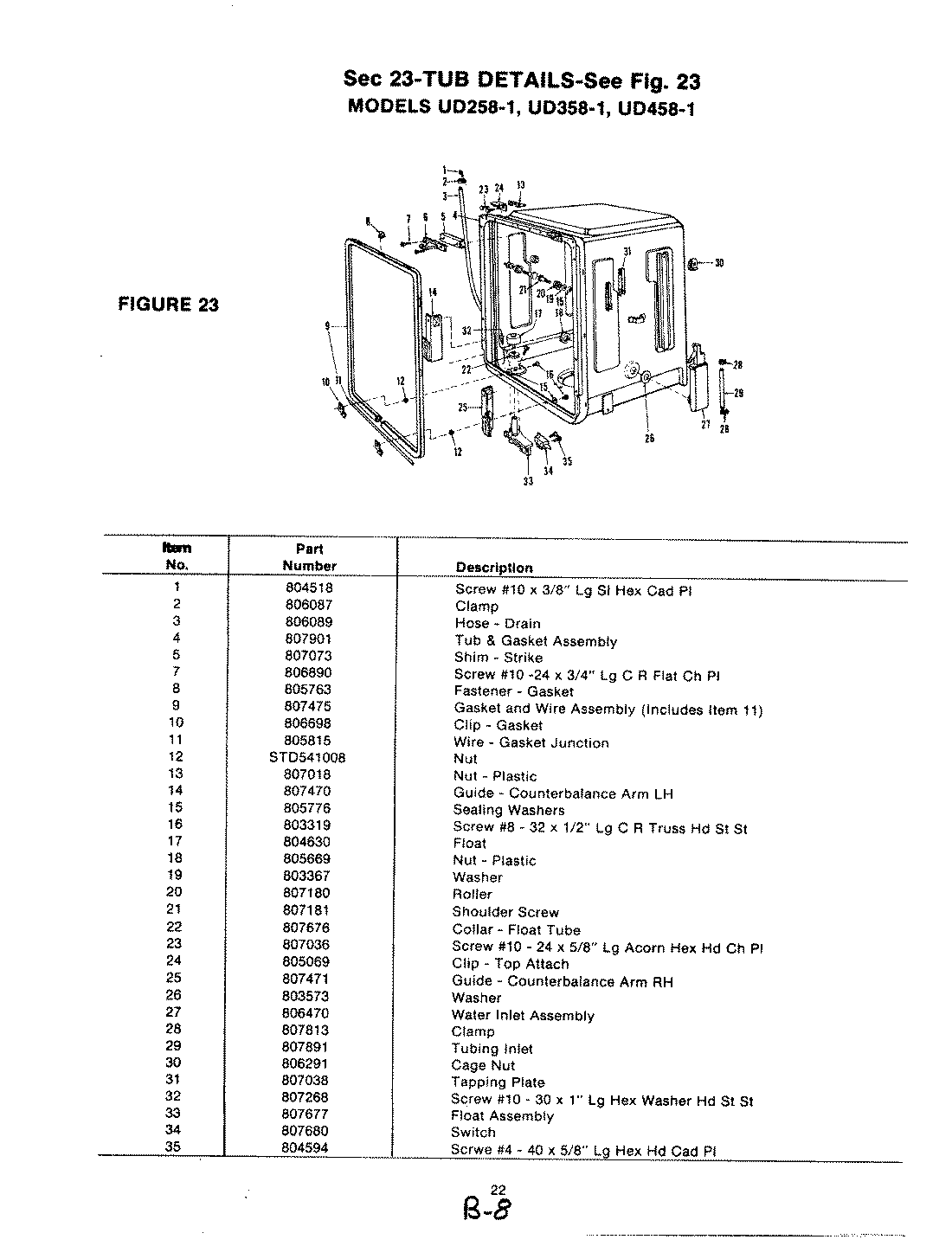

UD358-1 08 – TUB (UD358-1)

UD358-1 08 – TUB (UD358-1)

Written by

in

UD358-1 08 – TUB (UD358-1)

Products

Position	Product
1	SCREW
2	MAY 806087
3	MAY 806089
4	MAY 807901
5	STRIKE SHIM
6	STRIKE
7	MAY 806890
8	CLIP KIT (TUB GASKET)
9	MAY 807475
10	MAY 806698
11	MAY 805815
12	MAY 807018
13	LH GUIDE
14	SEALER
15	MAY 803319
16	MAY 804630
17	MAY 805669
18	MAY 803367
19	ROLLER
20	SCREW
21	MAY 807676
22	SCREW
23	CLIP
24	RH GUIDE
25	WASHER
26	MAY 806470
27	MAY 807813
28	INLET TUBE
29	MAY 806291
30	TAPPING PLATE
31	MAY 807268
32	FLOAT ASM
33	FLOAT SWITCH
34	BOLT
