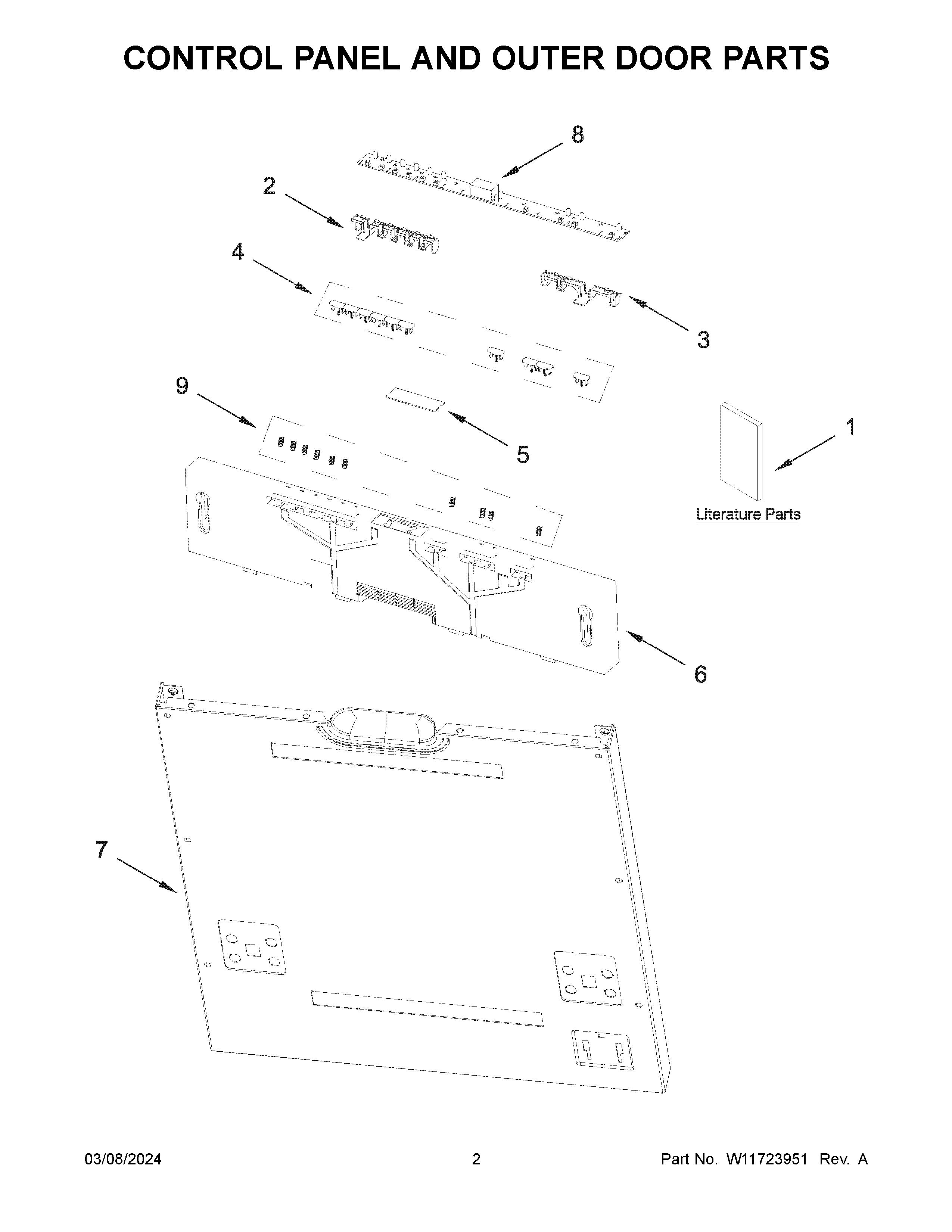

UDPS5118PP0 02 – CONTROL PANEL AND OUTER DOOR PARTS

UDPS5118PP0 02 – CONTROL PANEL AND OUTER DOOR PARTS

Written by

in

UDPS5118PP0 02 – CONTROL PANEL AND OUTER DOOR PARTS

Products

PositionProduct
1DTEMPLATE, CUSTOM PANEL
1CINSTALLATION INSTRUCTIONS, CUSTOM PANEL
1BTECH SHEET
1AINSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
2W11225694 Whirlpool Cover
3LIGHT COVER, 3-WAY
4BUTTON
5COVER STICKER, CONTROL PANEL
6CONTROL PANEL
7PANEL, OUTER DOOR
8W11247322 Whirlpool Display
9SPRING
