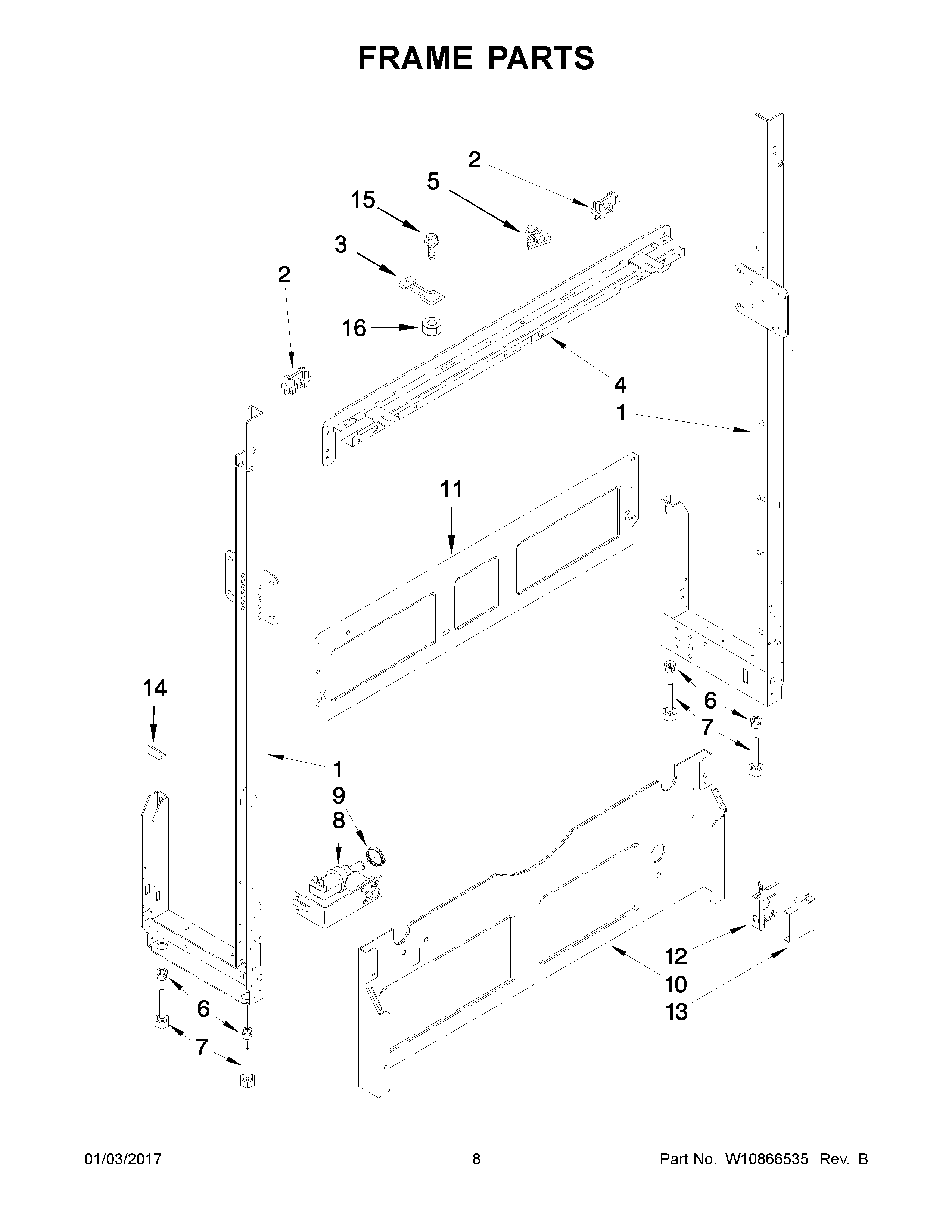

UDT518SAFP0 05 – FRAME PARTS

Products

Position	Product
1	FRAME, UPRIGHTS (LEFT HAND)
1A	WPW10567702 Whirlpool Right Hand Frame
2	BLOCK (BLACK)
3	W10567501 Whirlpool Dishwasher Hook
4	W10567701 Whirlpool Front Brace
5	W10567502 Whirlpool Dishwasher Block
6	W10567574 Whirlpool Dishwasher Nut M
7	LEG, LEVELING
8	W10875007 Whirlpool Dishwasher Inlet Valve
9	CLAMP
10	W10567716 Whirlpool Front Brace
11	W10567717 Whirlpool Brace
12	W10567566 Whirlpool Cover Box
13	WPW10567567 Whirlpool Dishwasher Terminal Box
14	SUPPORT, TUB
15	SCREW
16	W10852389 Whirlpool Nut
