UDT518SAHP0 03 – INNER DOOR PARTS

UDT518SAHP0 03 – INNER DOOR PARTS

Written by

in

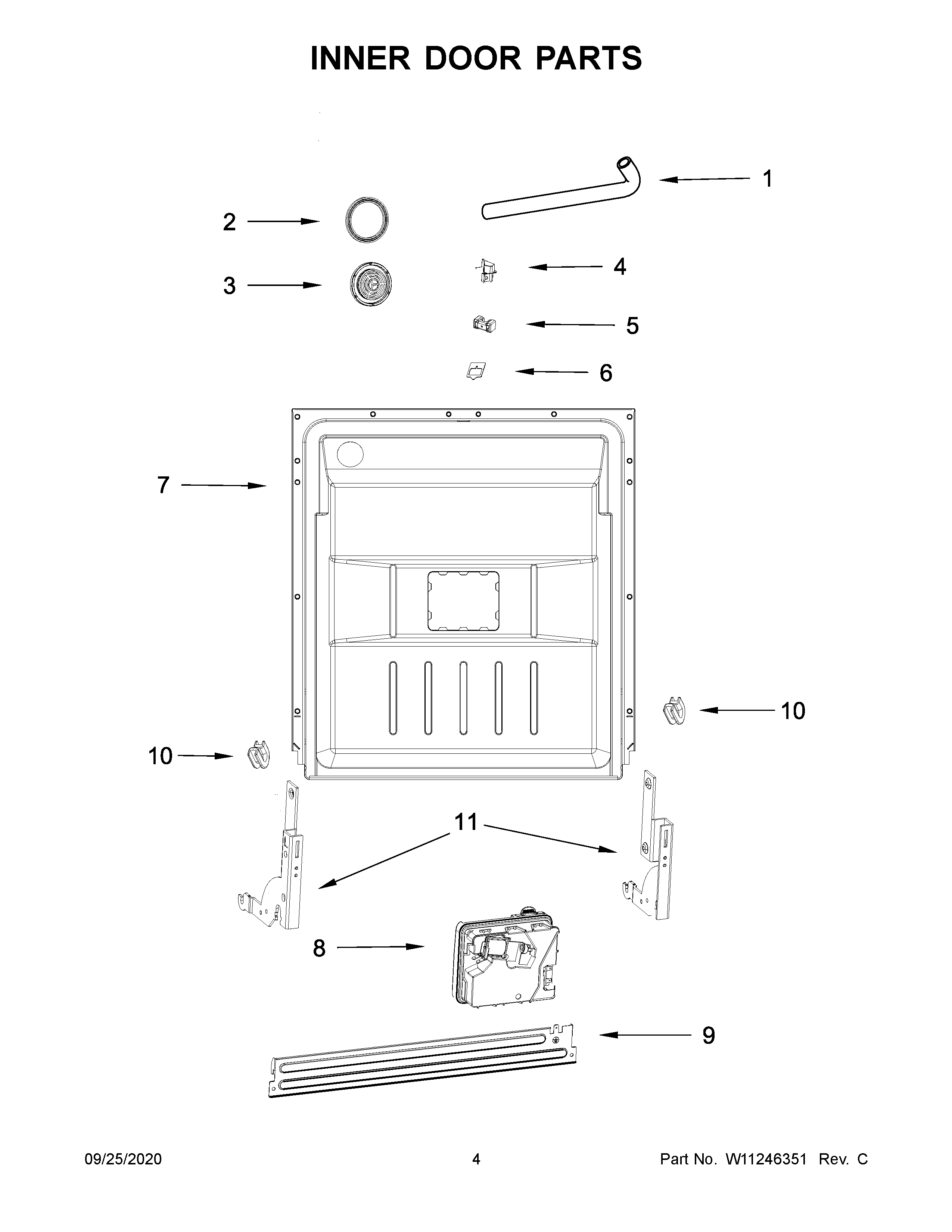

UDT518SAHP0 03 – INNER DOOR PARTS

Products

PositionProduct
1DUCT, VENT
2W11243344 Whirlpool Gasket
3W11243345 Whirlpool Dishwasher Deflector
4W11226146 Whirlpool Dishwasher Door Latch
5STRIKE, LATCH
6GASKET
7W11230130 Whirlpool Inner Door Assembly
8W11689795 Whirlpool Dispenser
9W11243347 Whirlpool Dishwasher Hinge Bracket
10W11243348 Whirlpool Dishwasher Clip
11W11226198 Whirlpool Dishwasher Door Hinge
11AW11226199 Whirlpool Dishwasher Door Hinge
