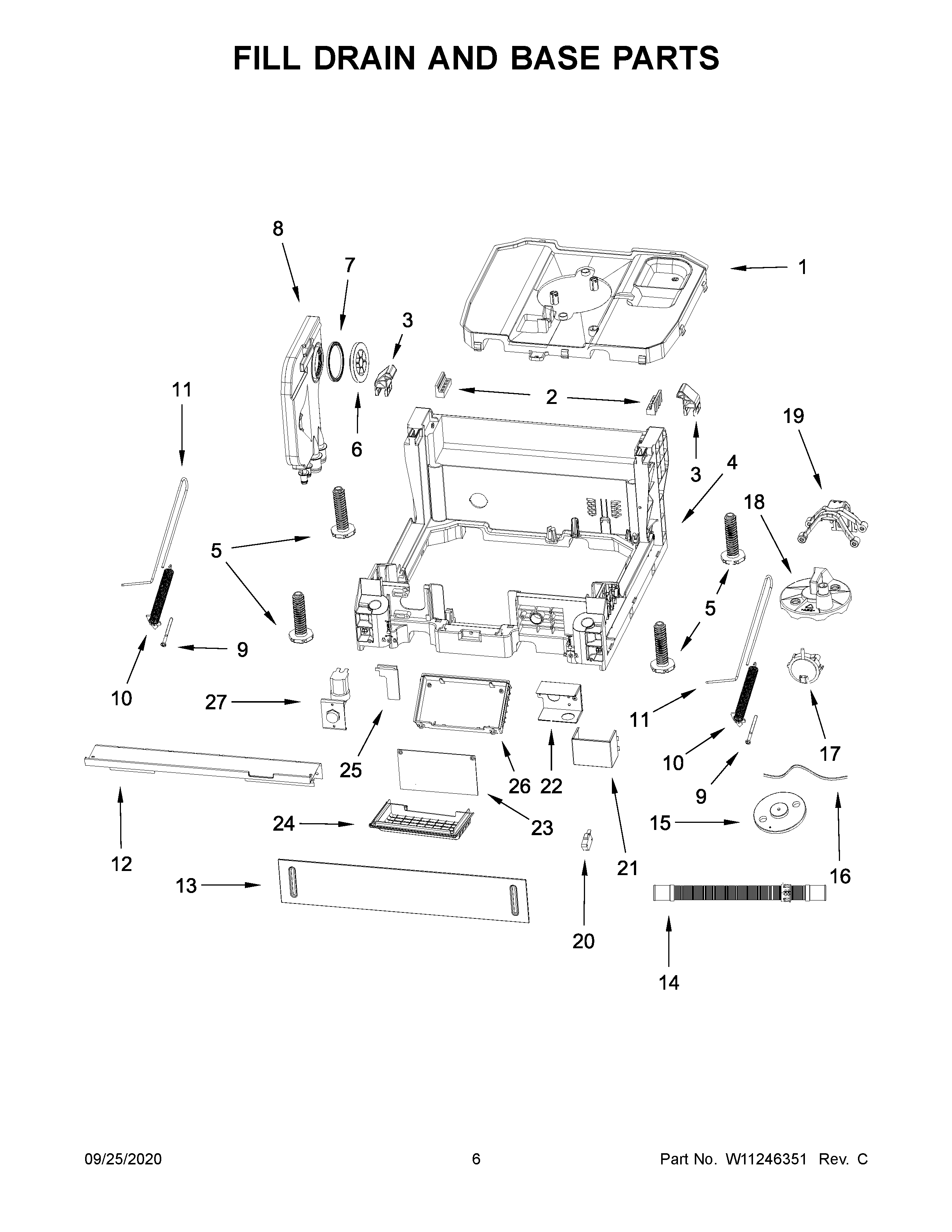

UDT518SAHP0 04 – FILL DRAIN AND BASE PARTS

UDT518SAHP0 04 – FILL DRAIN AND BASE PARTS

Written by

in

UDT518SAHP0 04 – FILL DRAIN AND BASE PARTS

Products

PositionProduct
1COVER, BASE
2TUB SUPPORT
3CONNECTING BLOCK, TUB
4BASE ASSEMBLY
5W11678567 Whirlpool Leg Leveler
6W11243378 Whirlpool Dishwasher Vent
7W11243380 Whirlpool Dishwasher Washer
8W11226325 Whirlpool Dishwasher Vent
9SCREW
10W11243386 Whirlpool Spring Assembly
11W11226865 Whirlpool Link Assembly
12W11408494 Whirlpool Dishwasher Panel
13W11397193 Whirlpool Toekick Plate
14W11243383 Whirlpool Dishwasher Drain Hose
15W11226858 Whirlpool Dishwasher Float
16PIPE
17W11226502 Whirlpool Dishwasher Water Level Switch
18W11226494 Whirlpool Dishwasher Float
19W11226339 Whirlpool Support
20W11243384 Whirlpool Switch
21W11226540 Whirlpool Dishwasher Box Cover
22W11226537 Whirlpool Dishwasher Box Cover
23W11524807-includeCORE Whirlpool W11524807 Dishwasher Electronic Control Board + Core
24W11226535 Whirlpool Dishwasher Box Cover
25BLOCK
26PCB BOX
27W11662359 Whirlpool Inlet Valve
