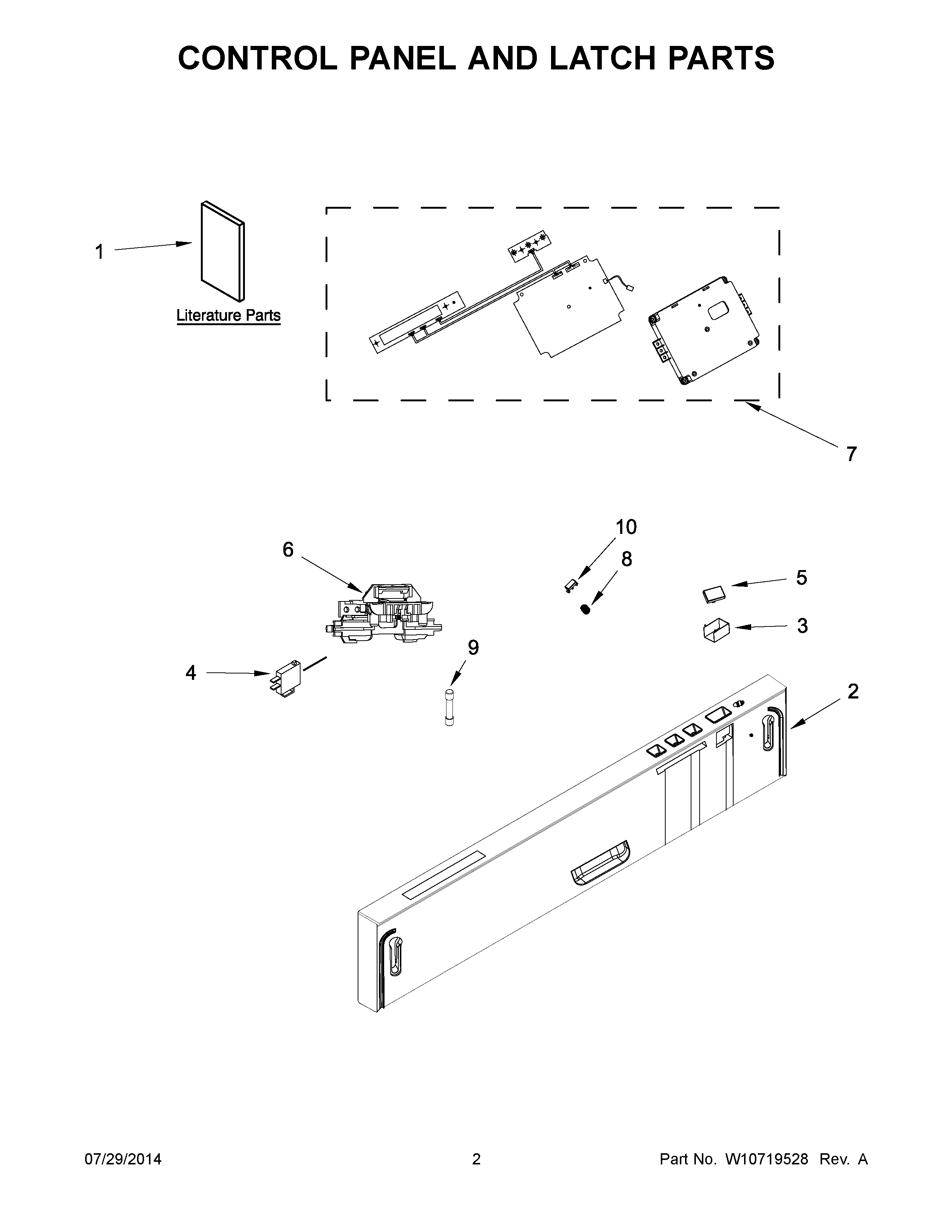

UDT518SBDP0 02 – CONTROL PANEL AND LATCH PARTS

Written by

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1A	USE & CARE GUIDE,ENGLISH/FRENCH
2	CONSOLE (BLACK)
3	BUTTON, PROTECTOR
4	W10859566 Whirlpool Dishwasher Switch
5	BUTTON, START/PAUSE
6	BOLT, LATCH
7	WPW10718037 Whirlpool Electronic Control
8	SPRING, BUTTON
9	W10487251 Whirlpool Dishwasher Fuse
10	BUTTON, CYCLE/OPTION
