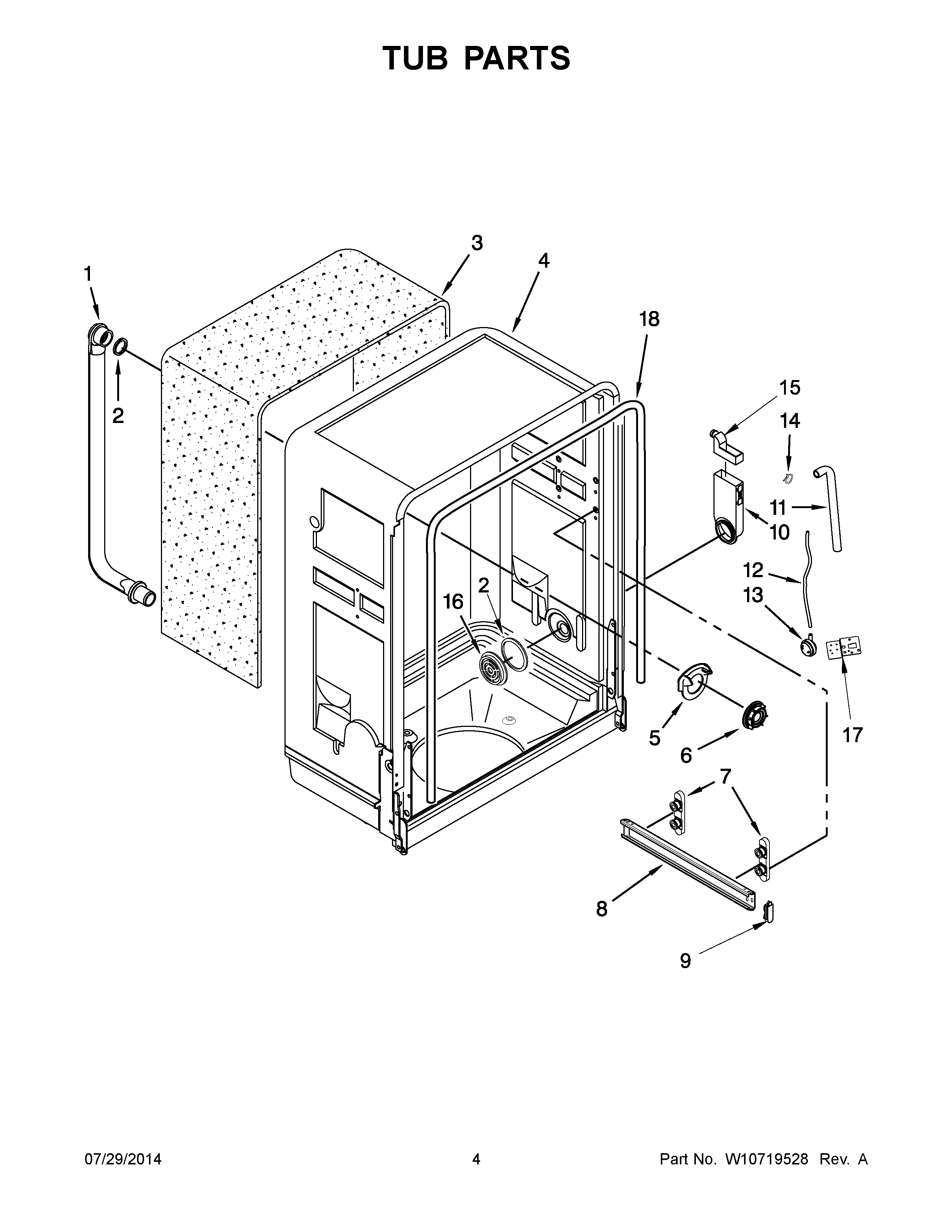

UDT518SBDP0 03 – TUB PARTS

UDT518SBDP0 03 – TUB PARTS

Written by

in

UDT518SBDP0 03 – TUB PARTS

Products

PositionProduct
1TUBE, FEED
2W10567637 Whirlpool Dishwasher Gasket
3WPW10567698 Whirlpool Shield
4TUB
5W10567636 Whirlpool Dishwasher Guide
6W10567635 Whirlpool Dishwasher Tube Nut
7W11685772 Whirlpool Tub Wheel
8W10567559 Whirlpool Dishwasher Track
9W11165171 Whirlpool Dishwasher Stop
10W10567624 Whirlpool Dishwasher Water Inlet
11HOSE, INLET
12W10567668 Whirlpool Dishwasher Fill Hose
13W10567650 Whirlpool Dishwasher Water Level Switch
14W10567621 Whirlpool Dishwasher Clamp
15W10567622 Whirlpool Dishwasher Inlet Cover
16W10567660 Whirlpool Inlet Bezel
17W10567669 Whirlpool Support Assembly
18GASKET, TUB
