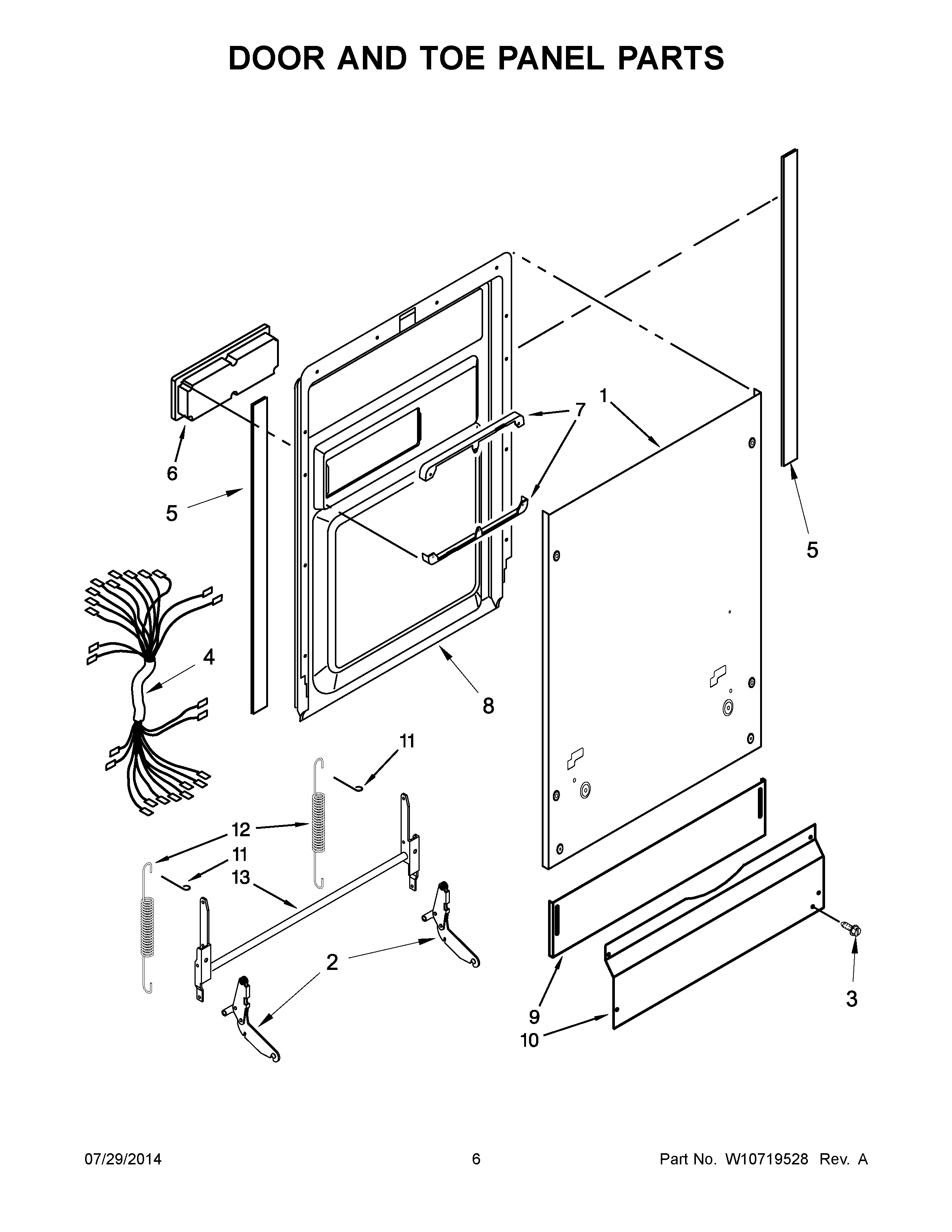

UDT518SBDP0 04 – DOOR AND TOE PANEL PARTS

UDT518SBDP0 04 – DOOR AND TOE PANEL PARTS

Written by

in

UDT518SBDP0 04 – DOOR AND TOE PANEL PARTS

Products

PositionProduct
1PANEL, OUTER DOOR
2W10567695 Whirlpool Dishwasher Door Hinge
2AW10567694 Whirlpool Door Hinge
3SCREW (WHITE)
4WIRING HARNESS
5GUARD, INNER DOOR (WHITE)
6DISPENSER
7W10567606 Whirlpool Dishwasher Dispense Bracket
8DOOR, INNER
9PANEL, TOE (WHITE)
10WPW10567714 Whirlpool Dishwasher Toe Panel
11W10567596 Whirlpool Dishwasher Pin
12W10567691 Whirlpool Dishwasher Spring
13W10567692 Whirlpool Hinge Bracket
