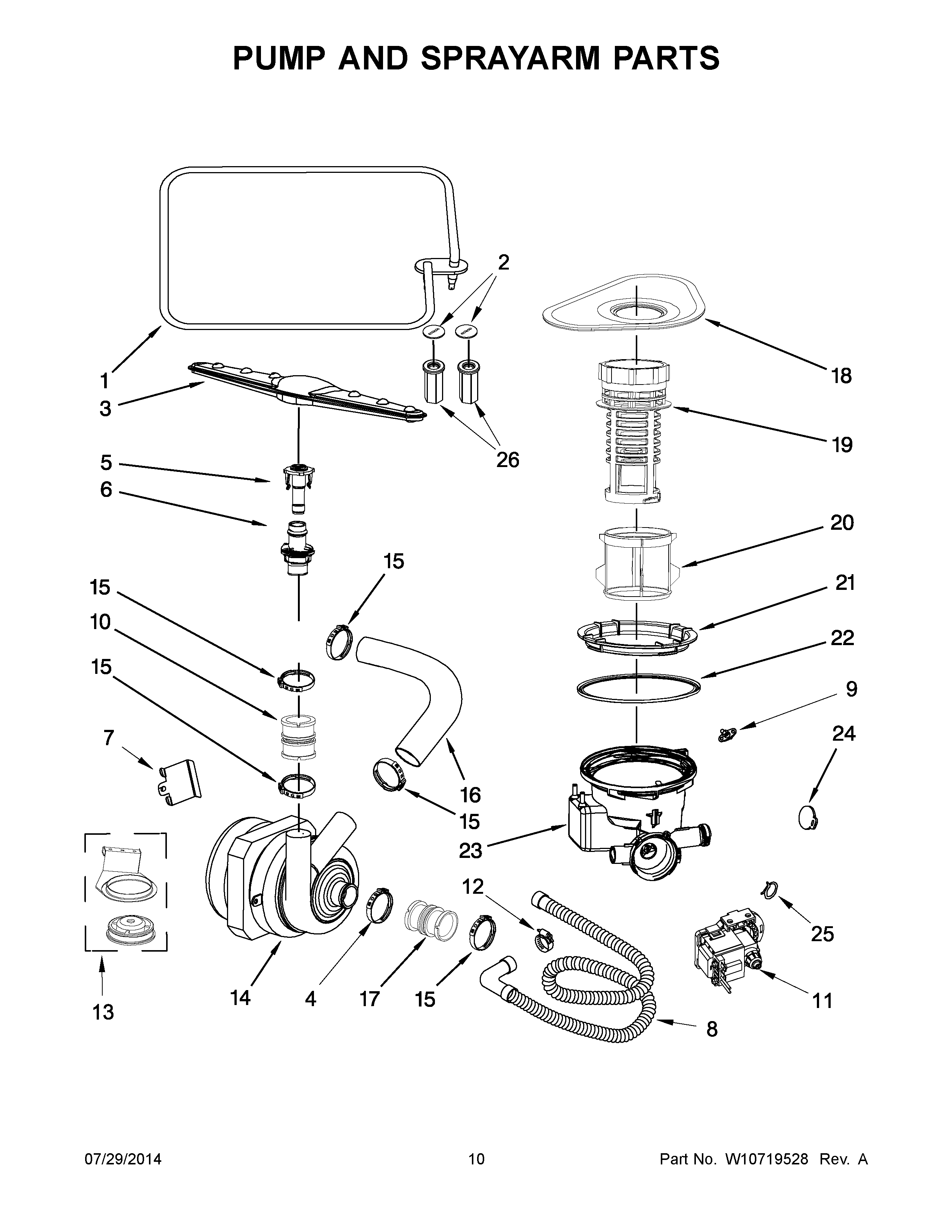

UDT518SBDP0 06 – PUMP AND SPRAYARM PARTS

UDT518SBDP0 06 – PUMP AND SPRAYARM PARTS

Written by

in

UDT518SBDP0 06 – PUMP AND SPRAYARM PARTS

Products

PositionProduct
1WPW10567663 Whirlpool Dishwasher Heater
2W10567629 Whirlpool Dishwasher Terminal Nut
3W10567666 Whirlpool Dishwasher Spray Arm
4W10783615 Whirlpool Dishwasher Clamp
5W10567667 Whirlpool Dishwasher Support Arm
6W10567641 Whirlpool Dishwasher Support Arm
7SUPPORT, CAPACITOR
8WPW10567628 Whirlpool Dishwasher Drain Hose
9W10567618 Whirlpool Dishwasher Thermistor
10W10567643 Whirlpool Dishwasher Hose
11W11677711 Whirlpool Drain Pump
12W10567654 Whirlpool Dishwasher Clamp
13MOTOR SUPPORT ASSEMBLY
14WPW10567645 Whirlpool Dishwasher Pump Motor
15WPW10567646 Whirlpool Dishwasher Clamp
16W10567642 Whirlpool Dishwasher Hose
17W10567649 Whirlpool Dishwasher Hose
18W10567613 Whirlpool Dishwasher Sieve
19FLITER, DRAIN
20MICROFILTER
21NUT, SUMP
22W10717670 Whirlpool Dishwasher Gasket
23SUMP
24W10567620 Whirlpool Dishwasher Check Valve
25W10567621 Whirlpool Dishwasher Clamp
26NUT, HEATING ELEMENT
