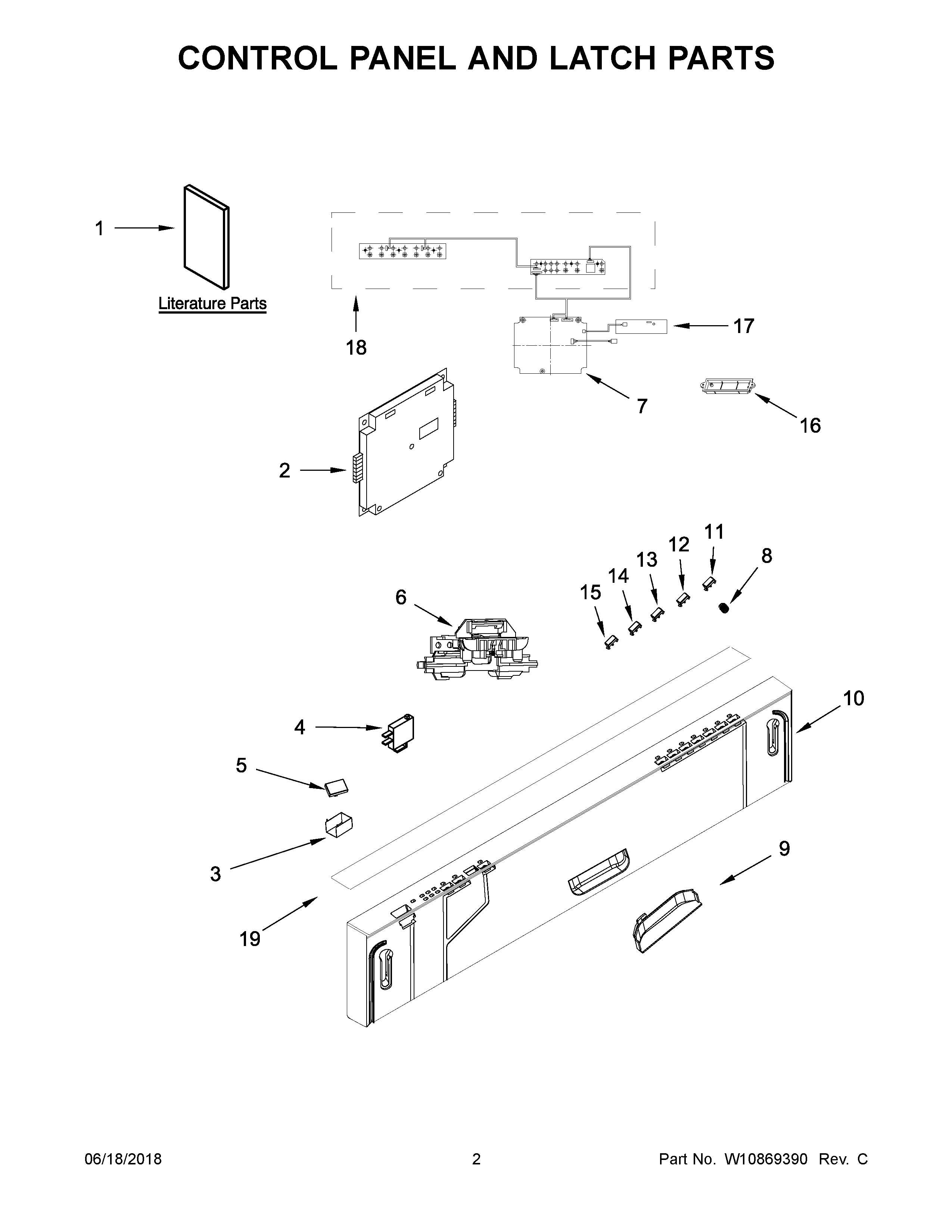

UDT555SAFP0 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1AUSE & CARE GUIDE (ENGLISH/FRENCH)
1BUSE & CARE GUIDE (SPANISH)
2COVER, MAIN CONTROL
3BUTTON, PROTECTOR
4W10859566 Whirlpool Dishwasher Switch
5BUTTON, START/PAUSE
6BOLT, LATCH
7CONTROL, ELECTRONIC
8SPRING, BUTTON
9HANDLE, POCKET
10W10891561 Whirlpool Dishwasher Control Panel
11BUTTON, CYCLE
12BUTTON, HEATED DRY
13BUTTON, HIGH TEMP
14BUTTON, DELAY
15BUTTON, LOCK
16W10883770 Whirlpool Dishwasher Base
17SENSOR, PCB
18W10891573 Whirlpool Dishwasher Electronic Control Board
19COVER STICKER, CONTROL PANEL
