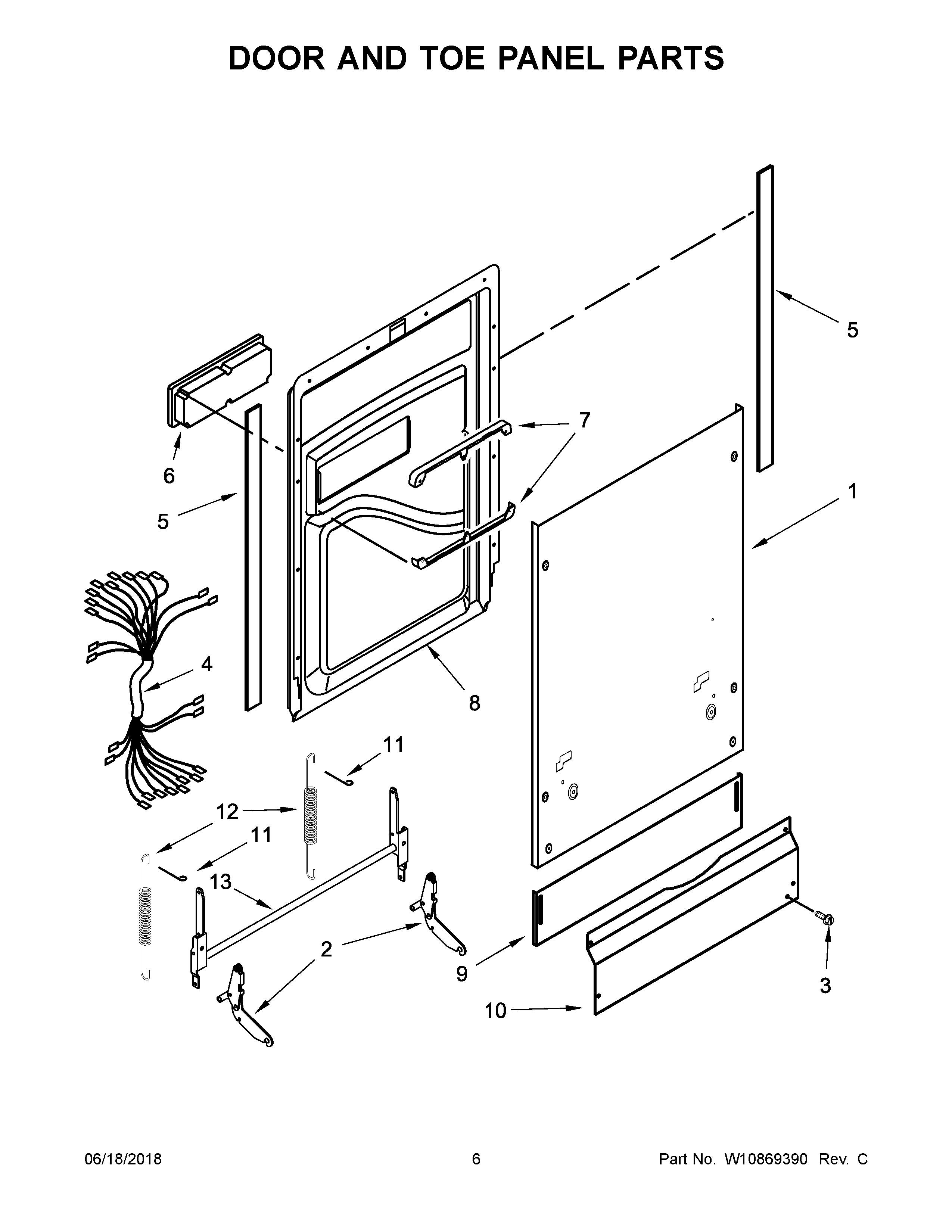

UDT555SAFP0 04 – DOOR AND TOE PANEL PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11084038 Whirlpool Miscellaneous Parts
1W10891560 Whirlpool Dishwasher Panel
2HINGE, DOOR (LEFT HAND)
2AHINGE, DOOR (RIGHT HAND)
3W10517912 Whirlpool Dishwasher Screw
4WIRING HARNESS
5W10868370 Whirlpool Dishwasher Seal
6DISPENSER
7W10567606 Whirlpool Dishwasher Dispense Bracket
8DOOR, INNER
9WPW10567571 Whirlpool Dishwasher Toe Panel
10PANEL, ACCESS (BLACK)
11W10567596 Whirlpool Dishwasher Pin
12W10717649 Whirlpool Dishwasher Spring
13WPW10567602 Whirlpool Dishwasher Hinge Bracket
