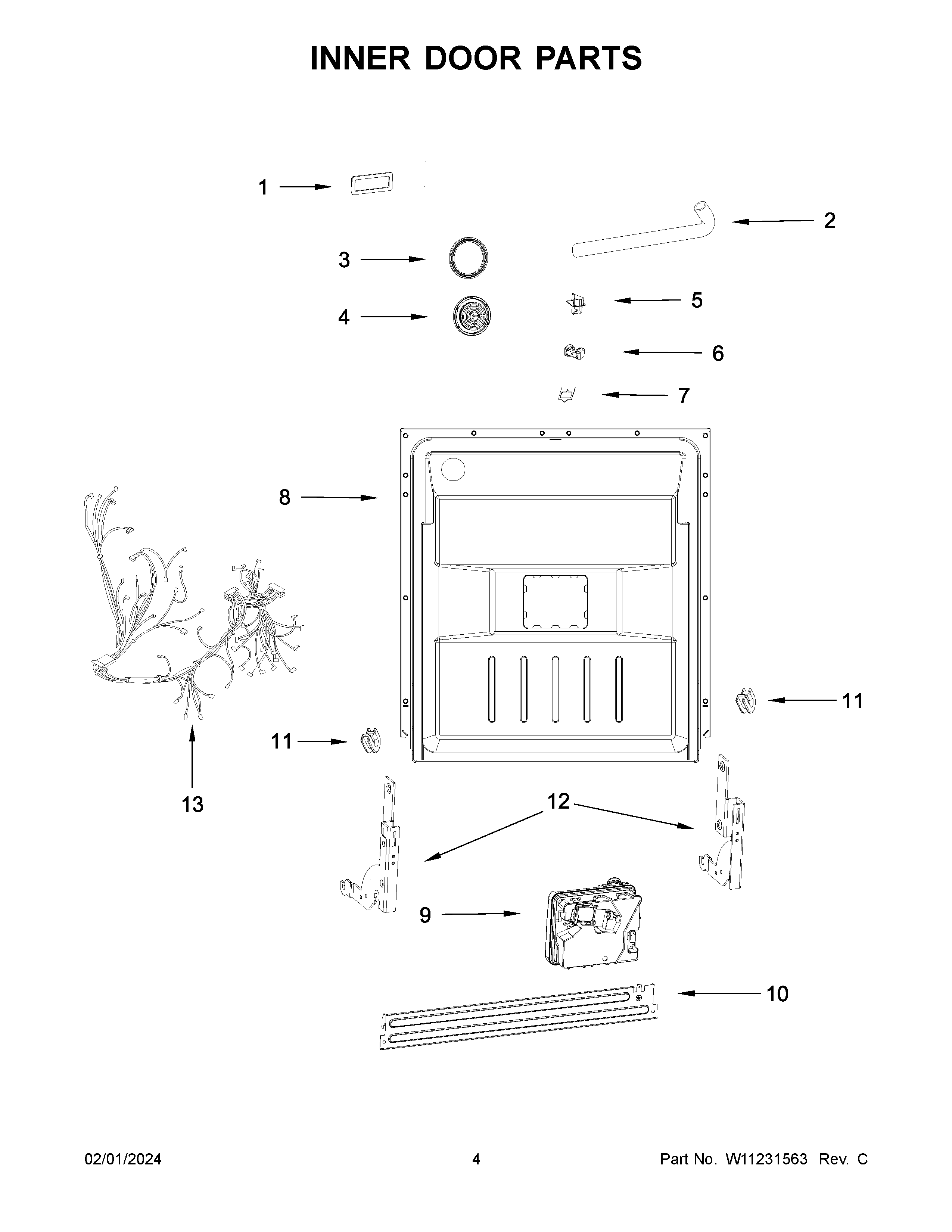

UDT555SAHP0 03 – INNER DOOR PARTS

UDT555SAHP0 03 – INNER DOOR PARTS

Written by

in

UDT555SAHP0 03 – INNER DOOR PARTS

Products

PositionProduct
1W11225863 Whirlpool Gasket
2DUCT, VENT
3W11243344 Whirlpool Gasket
4W11243345 Whirlpool Dishwasher Deflector
5W11226146 Whirlpool Dishwasher Door Latch
6STRIKE, LATCH
7GASKET
8W11226196 Whirlpool Dishwasher Inner Door
9W11689795 Whirlpool Dispenser
10W11243347 Whirlpool Dishwasher Hinge Bracket
11W11243348 Whirlpool Dishwasher Clip
12W11226198 Whirlpool Dishwasher Door Hinge
12AW11226199 Whirlpool Dishwasher Door Hinge
13W11334448 Whirlpool Dishwasher Wire Harness
