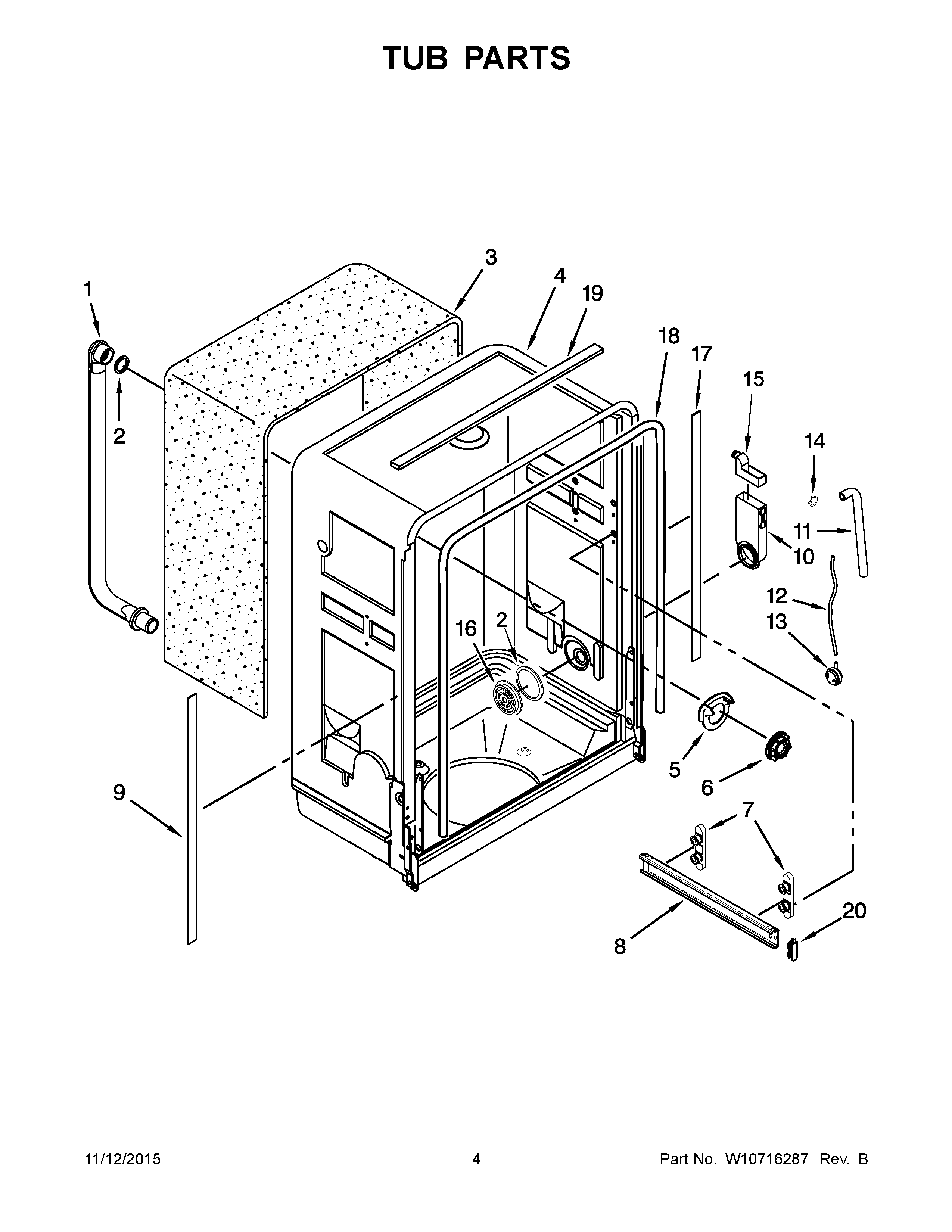

UDT555SBDP0 03 – TUB PARTS

Products

Position	Product
1	TUBE, FEED
2	W10567637 Whirlpool Dishwasher Gasket
3	WPW10567495 Whirlpool Shield
4	W10567498 Whirlpool Dishwasher Tub
5	W10567636 Whirlpool Dishwasher Guide
6	W10567635 Whirlpool Dishwasher Tube Nut
7	W11685772 Whirlpool Tub Wheel
8	W10567559 Whirlpool Dishwasher Track
9	W10567577 Whirlpool Tank Trim
11	W10717671 Whirlpool Dishwasher Hose
12	W10567668 Whirlpool Dishwasher Fill Hose
13	W10567650 Whirlpool Dishwasher Water Level Switch
14	W10567621 Whirlpool Dishwasher Clamp
15	W10567622 Whirlpool Dishwasher Inlet Cover
16	W10567660 Whirlpool Inlet Bezel
17	W10567562 Whirlpool Tank Trim
18	W10567557 Whirlpool Dishwasher Gasket
19	W10567503 Whirlpool Tank Trim
20	W11165171 Whirlpool Dishwasher Stop
21	W10567624 Whirlpool Dishwasher Water Inlet
