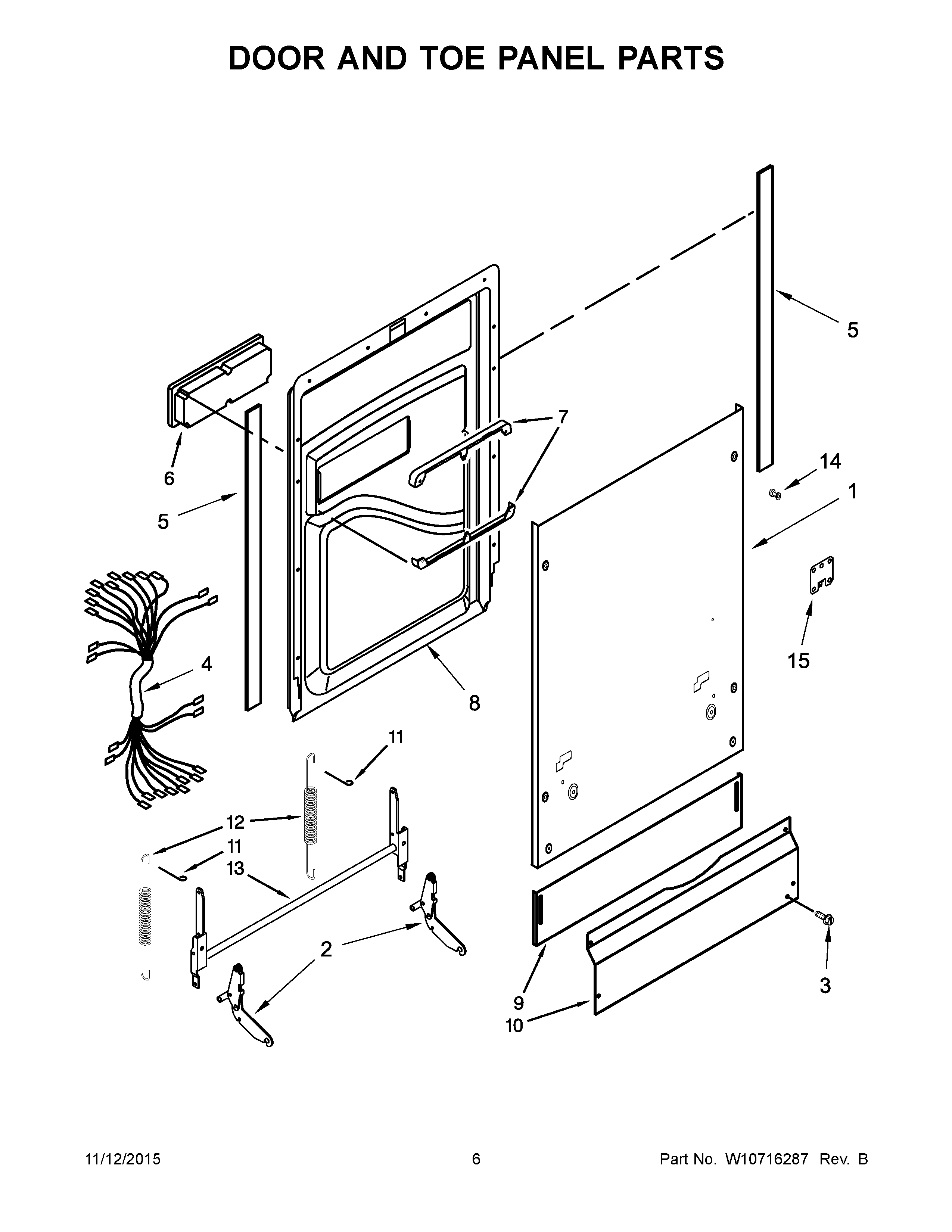

UDT555SBDP0 04 – DOOR AND TOE PANEL PARTS

Products

PositionProduct
1PANEL, DOOR
2AHINGE, DOOR (RIGHT HAND)
2HINGE, DOOR (LEFT HAND)
3SCREW (WHITE)
4WIRING HARNESS
5GUARD, INNER DOOR
6DISPENSER
7W10567606 Whirlpool Dishwasher Dispense Bracket
8DOOR, INNER
9WPW10567570 Whirlpool Toe Panel
10WPW10567568 Whirlpool Dishwasher Panel
11W10567596 Whirlpool Dishwasher Pin
12W10717649 Whirlpool Dishwasher Spring
13WPW10567602 Whirlpool Dishwasher Hinge Bracket
14BRACKET, PANEL
15BRACKET, PANEL
