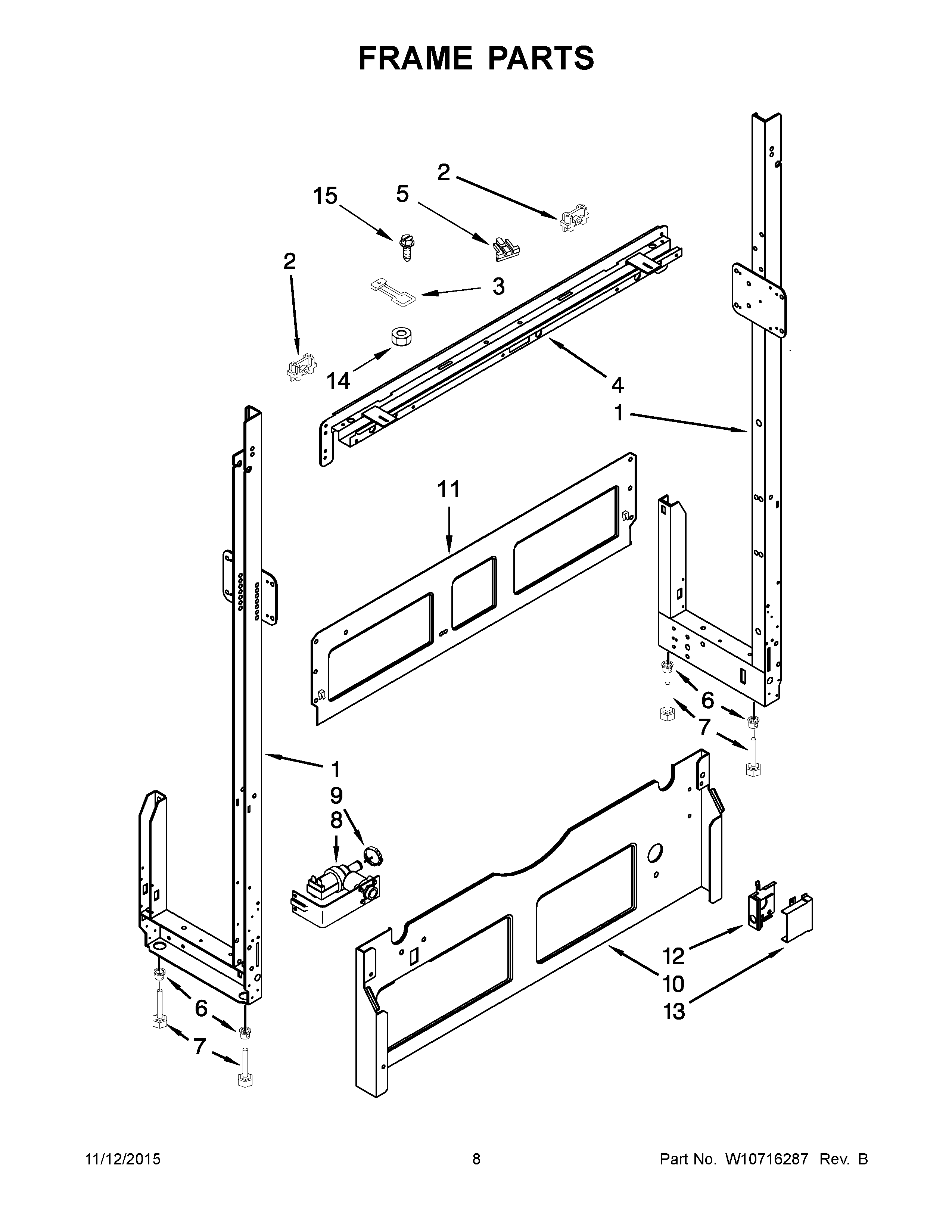

UDT555SBDP0 05 – FRAME PARTS

UDT555SBDP0 05 – FRAME PARTS

Written by

in

UDT555SBDP0 05 – FRAME PARTS

Products

PositionProduct
1FRAME, UPRIGHTS (LEFT HAND)
1AWPW10567496 Whirlpool Left Hand Frame
2BLOCK (WHITE)
3W10567501 Whirlpool Dishwasher Hook
4WPW10567505 Whirlpool Tank Trim
5W10567502 Whirlpool Dishwasher Block
6W10567574 Whirlpool Dishwasher Nut M
7LEG, LEVELING
8VALVE, FILL
9W10567652 Whirlpool Clamp
10WPW10567572 Whirlpool Brace
11W10567576 Whirlpool Brace
12W10567566 Whirlpool Cover Box
13WPW10567567 Whirlpool Dishwasher Terminal Box
14W10852389 Whirlpool Nut
15SCREW
