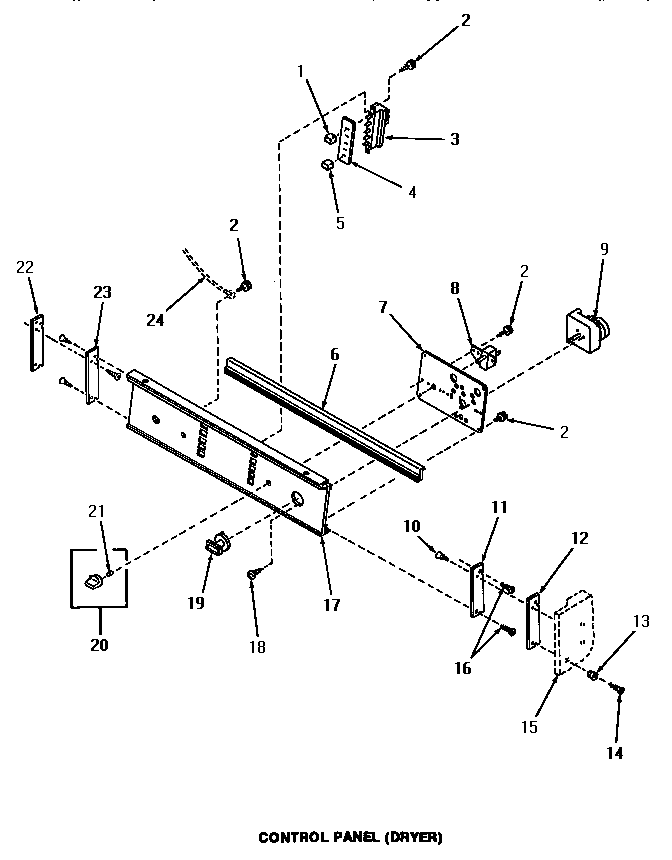

UE8031 06 – CONTROL PANEL (DRYER)

UE8031 06 – CONTROL PANEL (DRYER)

Written by

in

UE8031 06 – CONTROL PANEL (DRYER)

Products

Position	Product
1	MAY 29910
2	WP90767 Whirlpool Screw
3	MAY 30108
4	MAY 30039
5	MAY 28778
6	MAY 29855
7	MAY 29808
8	MAY 53516
9	MAY 56260
10	MAY 30302
11	MAY 29857
12	MAY 30292
13	MAY 29890
14	MAY 29896
16	MAY 52864
17	MAY 30170
18	MAY 70212
19	MAY 58772
20	MAY 28124
21	MAY 10519
22	MAY 29856
23	MAY 29858
24	SEE NOTE GROUND WIRE, GREEN
