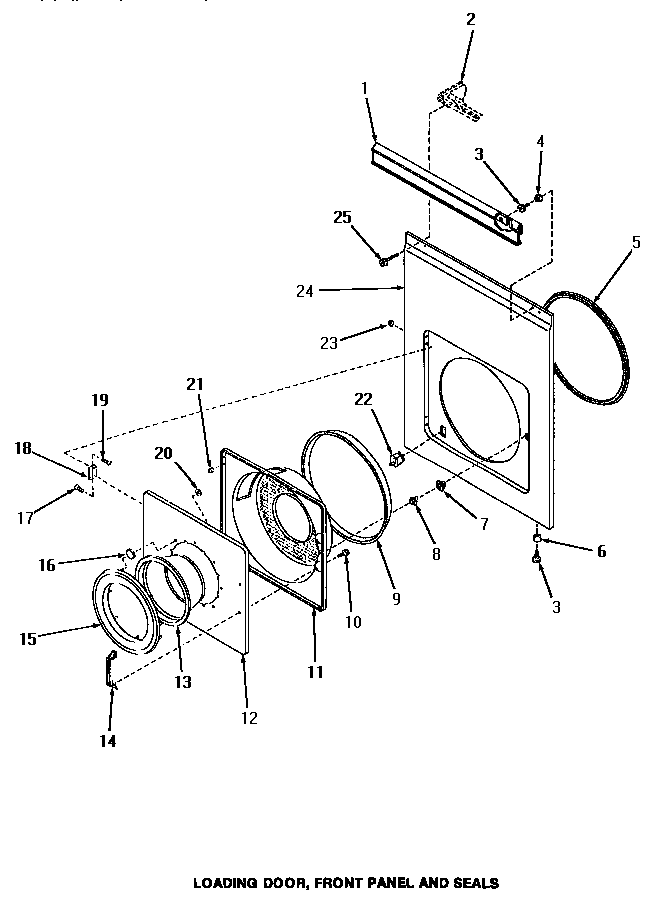

UE8031 08 – DRYER LOADING DOOR, FRONT PANEL & SEALS

UE8031 08 – DRYER LOADING DOOR, FRONT PANEL & SEALS

Written by

in

UE8031 08 – DRYER LOADING DOOR, FRONT PANEL & SEALS

Products

PositionProduct
ORDER GRAPHICS PANEL FROM THE SOURCE WHERE THE DRYER WAS PURCHASED. INCLUDE THECOMPLETE MODEL AND SERIAL NUMBERS WITH ORDER.
1MAY 58781
2SEE NOTE GROUND WIRE, GREEN
3MAY 56086
4MAY 58810
5MAY 56091
6MAY 56079
7MAY 54660
8MAY 54661
9MAY 56163
10MAY 52150
11MAY 58499
12MAY 57737W
12MAY 57737L
13MAY 57735
14MAY 58809
15MAY 58796
16MAY 23225
17MAY 52864
18MAY 56045
19MAY 22649
20WP72107 Whirlpool Touchup
21MAY 23407
22MAY 56052
23MAY 51236
24MAY 58811L
24MAY 58811W
25MAY 58637
