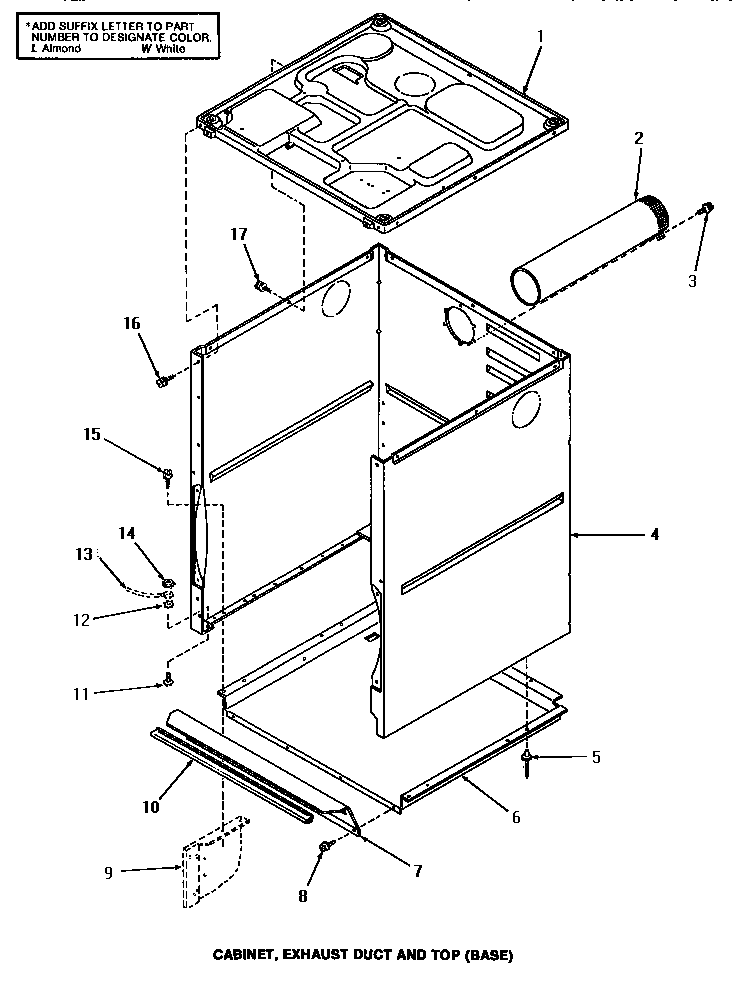

UE8230 04 – CABINET, EXHAUST DUCT & TOP (BASE)

UE8230 04 – CABINET, EXHAUST DUCT & TOP (BASE)

Written by

in

UE8230 04 – CABINET, EXHAUST DUCT & TOP (BASE)

Products

PositionProduct
1MAY 58530
2MAY 56118
3MAY 25724
4MAY 58524W
4MAY 58524L
5MAY 56565
6MAY 58537
7MAY 58548
8WP90767 Whirlpool Screw
10MAY 30215
11MAY 20267
12MAY 03815
13SEE NOTE GROUND WIRE, GREEN
14MAY 23951
15MAY 70135
16MAY 25723
17MAY 51784
