UE8230 19 – SIDE PANELS, FRONT PANEL & INNER BASE – Aparts

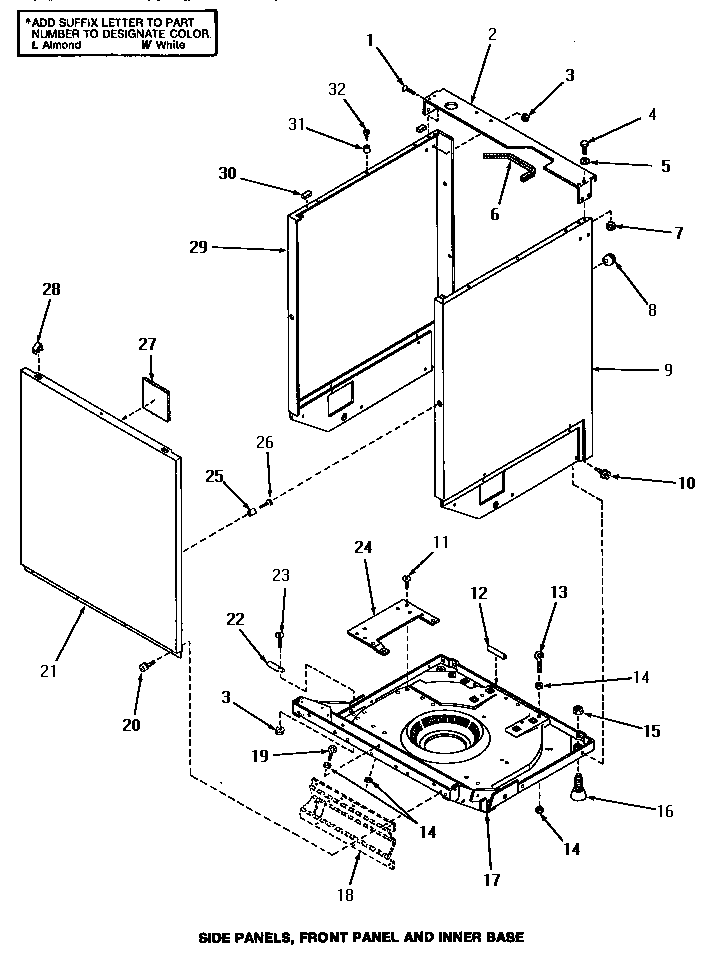

UE8230 19 – SIDE PANELS, FRONT PANEL & INNER BASE

Products

Position	Product
1	MAY 22649
2	MAY 30133
3	MAY 51236
4	MAY Y90576
5	MAY 20492
6	MAY 30318
7	MAY 23951
8	MAY 22299
9	MAY 29816L
9	MAY 29816W
11	MAY Q6535
12	MAY 29697
13	MAY 29776
14	MAY 26678
15	MAY Y21899
16	MAY 29650
17	MAY 30366
18	SEE NOTE GROUND WIRE, GREEN
19	MAY 29775
20	MAY 27196
21	MAY 29799W
21	MAY 29799L
22	MAY 29811
23	MAY 21632
24	MAY 29795
25	MAY 28102
27	MAY 30275
28	MAY 28835
29	MAY 29817L
29	MAY 29817W
30	MAY Y56128
31	MAY 56079
32	MAY 56086
