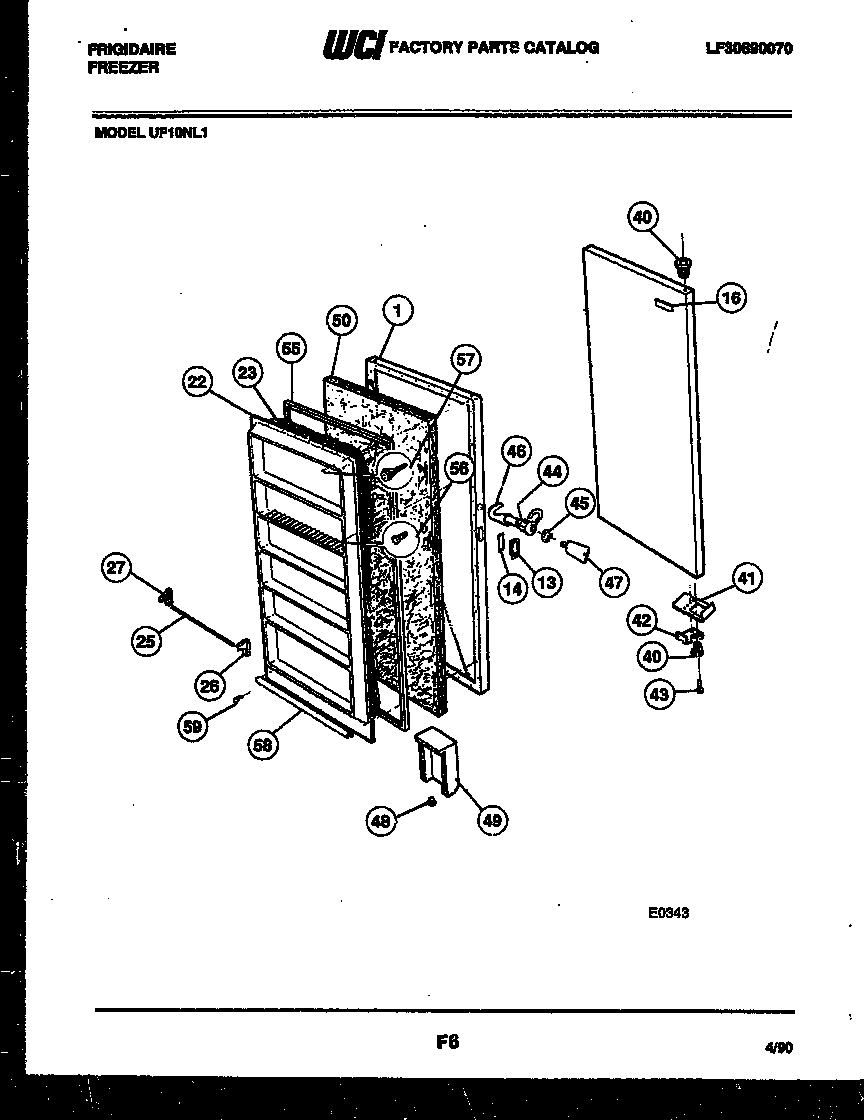

UF10NL1 02 – DOOR PARTS

Products

PositionProduct
1PANEL-DOOR (ALMD)
13HANDLE RECESSED
14GASKET, WHITE
16WCI 3204257
22INNER PANEL-WHITE
23WCI 06594525
25WCI R000128141
40297006800 Frigidaire Refrigerator Bearing Hinge
41BRACKET-DOOR STOP
42DOOR STOP
43Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
44WCI 5300190358
45Washer-sealing
46WCI 3202005
47297147700 Frigidaire Freezer Plastic Door Key
48Valve,breather ,door base
49WCI 5300128421
50INSULATION-BULK (NON-ILLUSTRATED)
55GASKET-DOOR (BROWN)
56216858001 Frigidaire Refrigerator Screw
57WCI 08009384
58WCI F125009
595303212828 Frigidaire Refrigerator Primary Clip
