UF10NL2 04 – SYSTEM AND ELECTRICAL PARTS

UF10NL2 04 – SYSTEM AND ELECTRICAL PARTS

Written by

in

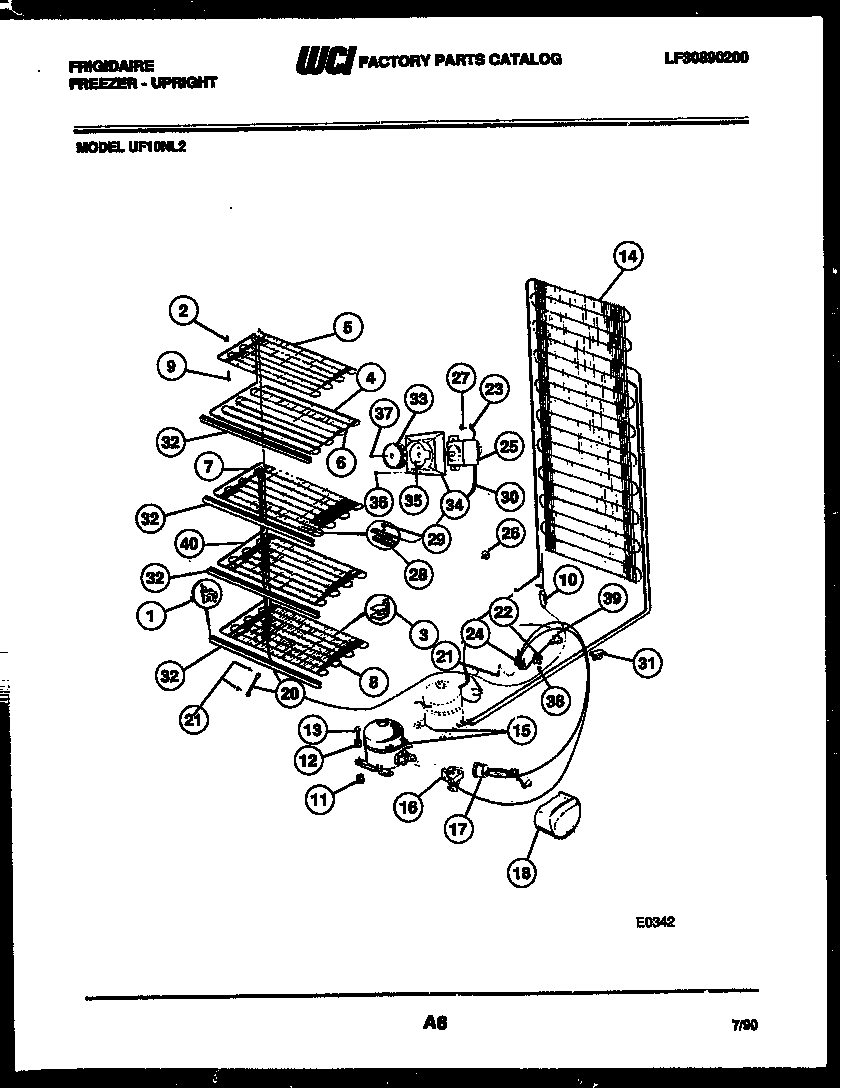

UF10NL2 04 – SYSTEM AND ELECTRICAL PARTS

Products

PositionProduct
1297001500 Frigidaire Shelf Support
1A297001600 Frigidaire Shelf Support
2SPCR-TOPGRID FRONT (2)
2ASPCR-TOP GRID REAR (NON-ILLUSTRATED)
3WCI F117447
4WCI 5308010744
5WCI 08010734
6WCI 08010735
7WCI 08010736
8WCI 08010737
9WCI F126260
105303305677 Frigidaire Replacement Filter Dryer Filters
11216498900 Frigidaire Refrigerator Grommet
12SLEEVE
13WCI F59211
14WCI F124042
15COMPRESSOR WITH ELECTRICALS
16WCI 5303017753
17WCI 5303206816
18COVER
20WCI F95424
225304455846 Frigidaire Refrigerator Clamp
23WCI F125347
24WCI F128536
25CONTROL TEMP
26WCI F112321
27216036601 Frigidaire Refrigerator Screw
28WCI F96850
29SCREW-CLAMP
30TUBE
31CLIP
32FRONT-SHELF (3)
33KNOB, COLD CONTROL
34WCI F128633
35SCREW CONTROL
36131420300 Frigidaire Screw
37SCREW KNOB
38216858001 Frigidaire Refrigerator Screw
39CORD
