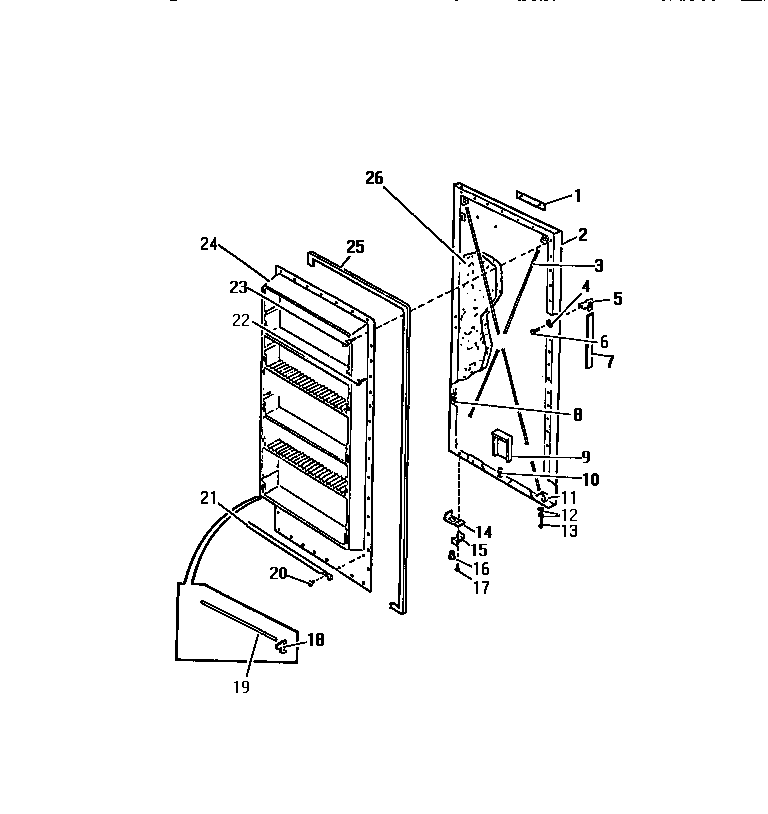

UF13JW6 04 – FREEZER DOOR PANELS

Products

Position	Product
*55801	WCI 9950831
*55800	INSULATION DIKE (4“)
1	WCI 8009843
2	WCI 8009556
3	ROD (2)
4	WCI 6594507
5	SUPPORT (2)
6	WCI 9418597
7	HANDLE
9	DUCT
10	VENT
11	WCI 5879859
12	WASHERS (2)
13	WCI 5879860
14	WCI 6594614
15	WCI 6593882
16	WCI 6593364
17	WCI 8005520
18A	INSERT, L.H. (4)
18	INSERT, R.H. (4)
19	WCI 8005523
20	CLIP, PANEL AND SEAL RETAINING (20)
21	WCI 6594682
22	WCI 8000440
23	SCREW (16)
24	WCI 8011921
25	WCI 8005526
26	WCI 9948966
