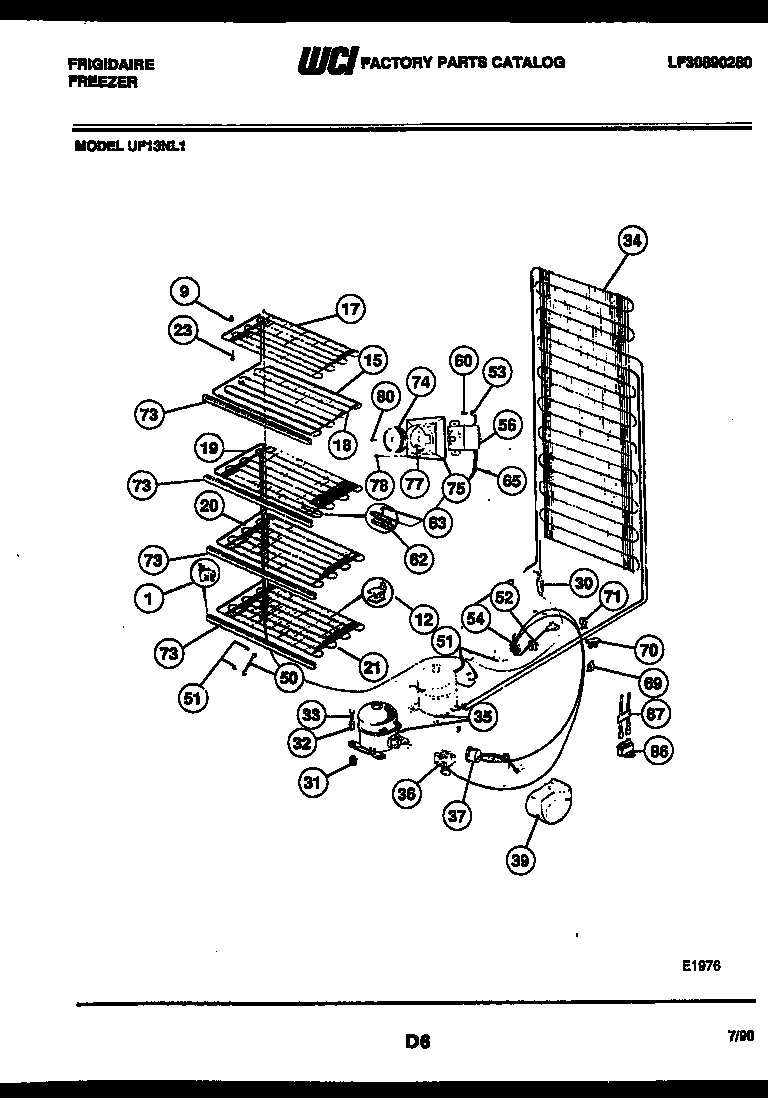

UF13NL1 04 – SYSTEM AND ELECTRICAL PARTS

UF13NL1 04 – SYSTEM AND ELECTRICAL PARTS

Written by

in

UF13NL1 04 – SYSTEM AND ELECTRICAL PARTS

Products

PositionProduct
1A297001600 Frigidaire Shelf Support
9AWCI 08037925
9WCI F081445
12WCI 09949960
15WCI 5308010744
17WCI 08010745
18WCI 08010746
19WCI 08010747
21WCI 08010748
23SCREW
305303305677 Frigidaire Replacement Filter Dryer Filters
31216498900 Frigidaire Refrigerator Grommet
32SLEEVE-COMPRESSOR
33CREW COMPR MTG
345300123788 Frigidaire Refrigerator Condenser
35COMPRESSOR WITH ELECTRICALS
36WCI 5303017753
37WCI 5303206816
39COVER
50WCI 06594651
525304455846 Frigidaire Refrigerator Clamp
53WCI F125347
54HARNESS W/ PWR CORD
56CONTROL TEMP
56ARETAINER, WIRE, BREAKER
60216036601 Frigidaire Refrigerator Screw
62CLAMP, CAP TUBE, COLD CONTROL
63SCREW-CLAMP
65TUBE
69WCI 09950610
70WCI 06599553
71CLIP COMP WIRE
73FRONT SHELF (3)
74KNOB
75HOUSING
76WCI 02601025
77SCREW, COVER CONTROL
78131420300 Frigidaire Screw
80WCI 09950853
81216858001 Frigidaire Refrigerator Screw
865304464438 Frigidaire Compressor Run Capacitor
87HARNESS CAPACITOR
