UF16DL1 10 – FREEZER DOOR PANELS

UF16DL1 10 – FREEZER DOOR PANELS

Written by

in

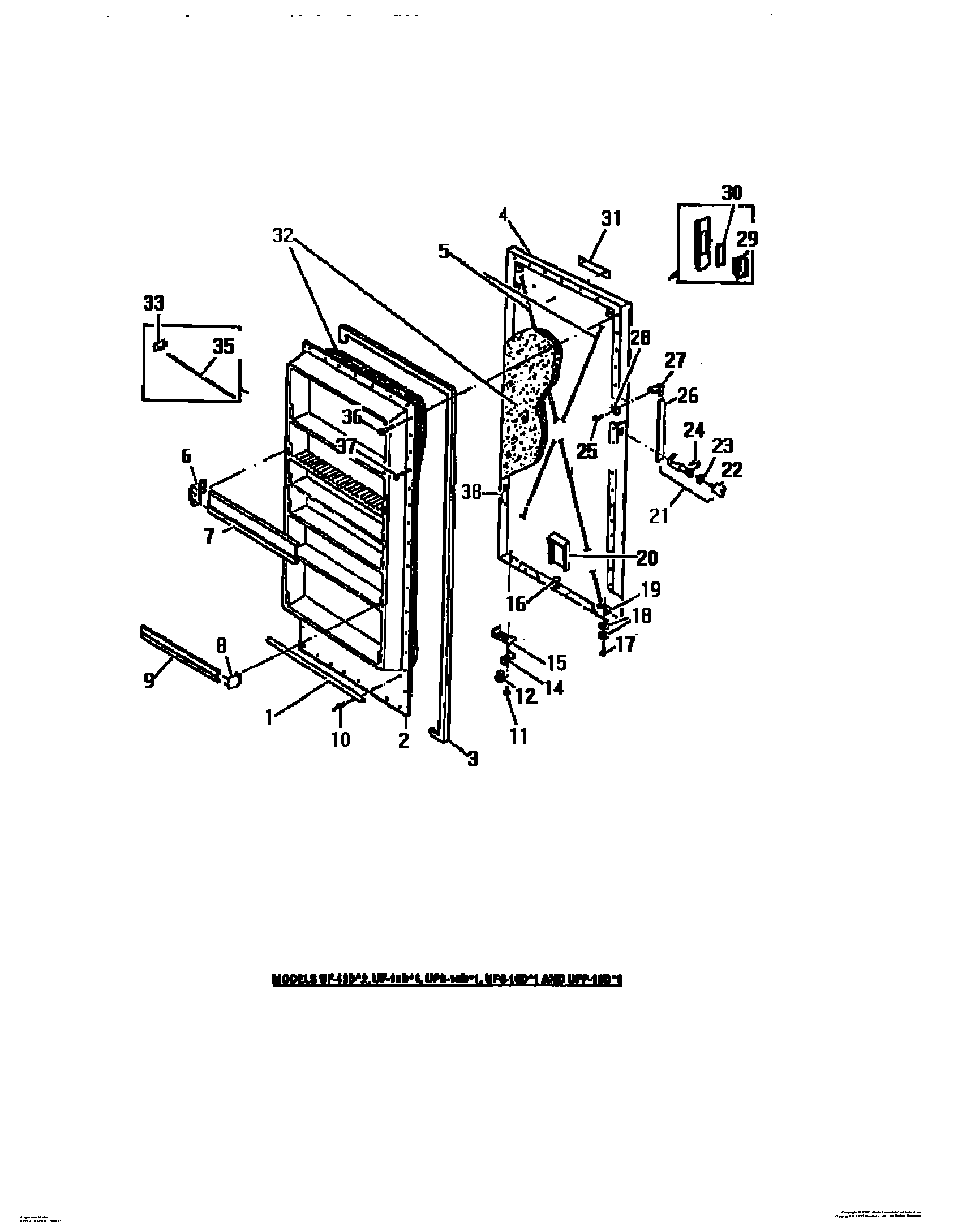

UF16DL1 10 – FREEZER DOOR PANELS

Products

PositionProduct
1WCI 8016355
2WCI 8011922
3WCI 8016358
4WCI 8016379
5ROD-DOOR SUPPORT (2)
6AWCI 8015540
6WCI 8015539
7WCI 8005534
8AINSERT, SHELF FRONT, NARROW, LH (4)
8INSERT, SHELF FRONT, NARROW, RH (4)
9WCI 8005533
10CLIP, PANEL AND SEAL RETAINING (20)
11WCI 8005520
12WCI 6593364
12AWCI 8016490
14WCI 8016354
15WCI 6594614
16VENT
17WCI 5879860
18WASHERS (2)
19WCI 5879859
20DUCT
21WCI 6599899
22WCI 6599905
23WCI 9948648
24WCI 9948787
25WCI 9418597
26HANDLE
27SUPPORT (2)
28WCI 6594507
31WCI 8009843
36WCI 8000440
37SCREW (16)
