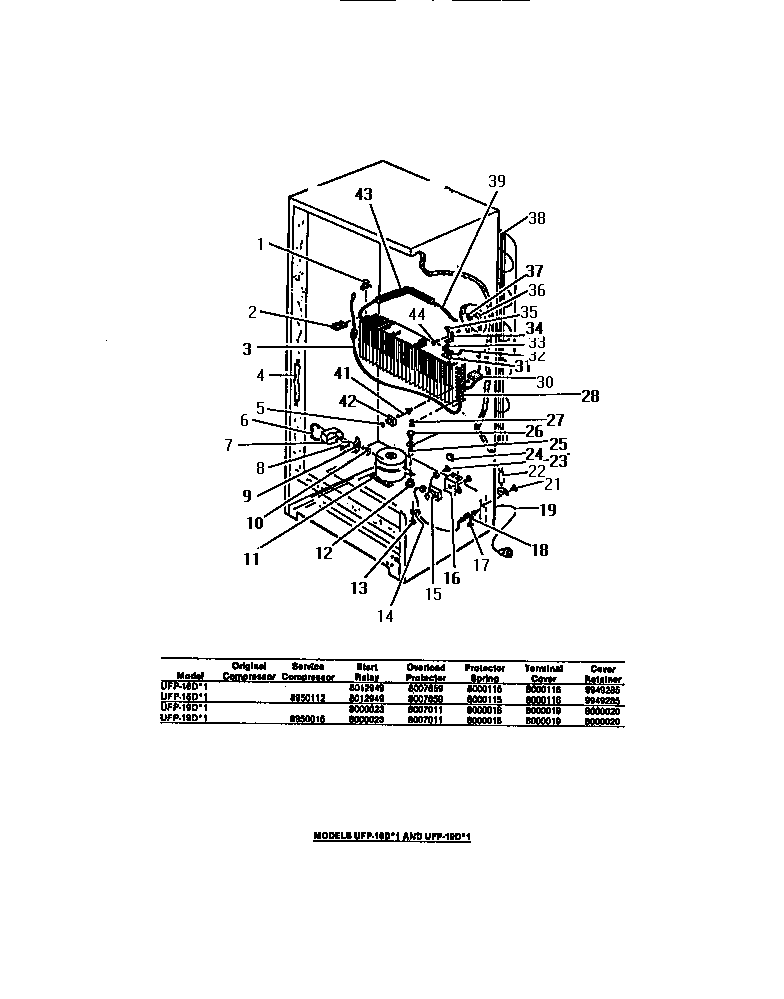

UF16DL1 13 – COMPRESSOR, EVAPORATOR, ELECTRICAL

Products

Position	Product
1	WCI 6599538
2	WCI 6599532
3	WCI 6599535
4	WCI 6594740
5	WCI 8013198
12	WCI 8002681
15	WCI 628515
16	WCI 6599541
17	WCI 8000440
18	CLAMP, WIRING
19	CORD, ELECTRICAL SERVICE (INCL. CABINET WIRING HARNESS)
19	CORD, ELECTRICAL SERVICE (INCL. CABINET WIRING HARNESS)
21	WCI 6599540
22	WCI 8000027
23	WCI 6594538
24	WCI 5878556
25	WCI 6594529
26	WCI 8002679
27	WCI 6599536
28	WCI 8005186
28	WCI 8013200
30	WCI 6599531
31	WCI 5878562
32	WCI 8000455
33	WCI 6594653
34	BRACKET, CONTROL
35	WCI 6593417
36	INSULATION, DRAIN TUBE
37	WCI 6594629
38	CONDENSER, EXTERNAL
39	WCI 8000728
39	WCI 8000446
41	WCI 6599544
42	WCI 6599546
43	WCI 6594625
44	SCREW GROUND
