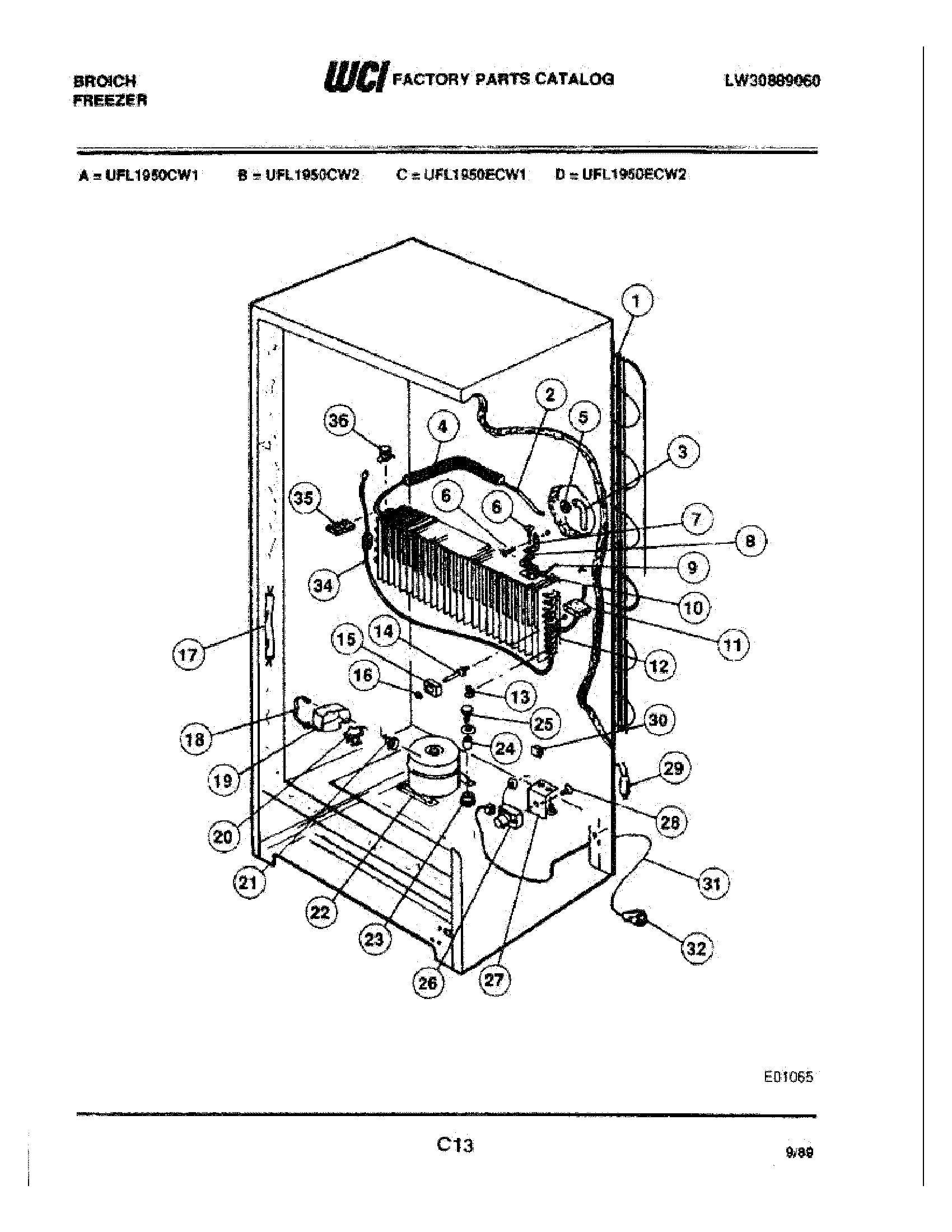

UFL1950CW1 09 – SYSTEM

Products

Position	Product
1	5300083897 Frigidaire Refrigerator Condenser P1 O/S2
2	WCI 3017673
3	WCI F58148-58
4	INSULATION
5	WCI F92161
6	216036601 Frigidaire Refrigerator Screw
7	WCI F88658
8	WCI F95480
9	TUBE
10	WCI F52940
11	WCI F111779
12	WCI 3200705
13	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
14	WCI F111731
15	SPACER
16	SPACER (2) (NON-ILLUSTRATED)
17	WCI F83588
18	5303006412 Frigidaire Refrigerator Cover Mounting Strap
20	WCI 3017753
21	WCI 3200957
22	WCI F301711
23	216498900 Frigidaire Refrigerator Grommet
24	SLEEVE
25	WCI F59211
26	5304518034 Frigidaire Refrigerator Defrost Timer
27	WCI F111694
28	WCI F52447
29	5303305677 Frigidaire Replacement Filter Dryer Filters
30	WCI F59872
31	WCI 3200961
32	CORD, SERVICE
33	5304455846 Frigidaire Refrigerator Clamp
34	WCI F129752
35	WCI F111780
36	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
