UFL1950ECW1 03 – DOOR

UFL1950ECW1 03 – DOOR

Written by

in

UFL1950ECW1 03 – DOOR

Products

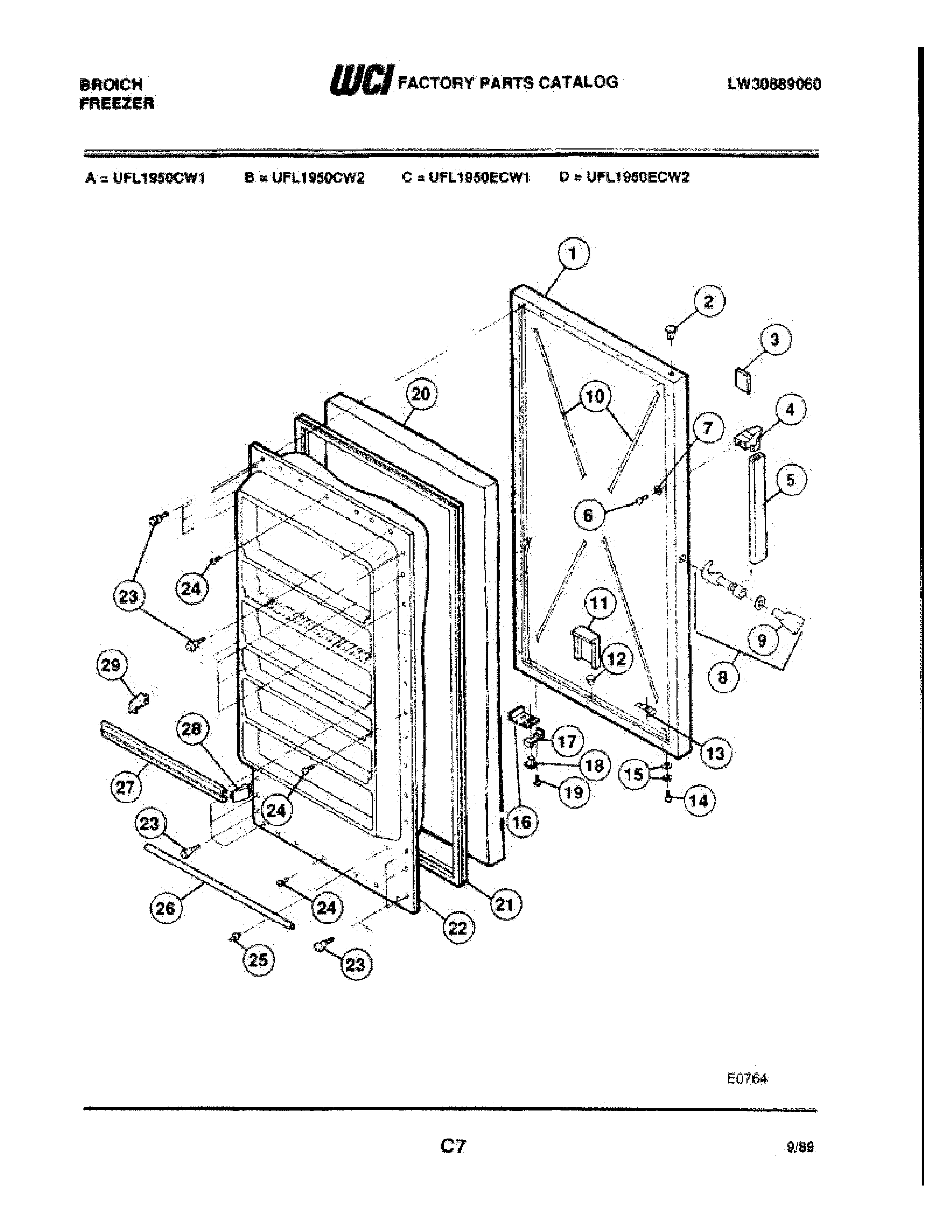

PositionProduct
1WCI 3200946
2WCI F84893
3WCI 3206049
4WCI 3206043
4WCI 3206044
5HANDLE
6131168200 Frigidaire Dryer Screw
7134716700 Frigidaire Washer
8WCI G190358
9297147700 Frigidaire Freezer Plastic Door Key
10WIRE
11AIR DUCT BREATHER
13WCI F57880
14WASHER BRACKET (2)
15SCREW, BRACKET (2)
16BRACKET-DOOR STOP
17WCI F124623
18297006800 Frigidaire Refrigerator Bearing Hinge
19SCREW-STOP
20WCI F116277
21WCI F129797
22INNER PANEL-WHITE
23SCREW-PANEL
24216858001 Frigidaire Refrigerator Screw
255303212828 Frigidaire Refrigerator Primary Clip
26216036601 Frigidaire Refrigerator Screw
27WCI 3206054
28WCI F112630
29WCI F112631
