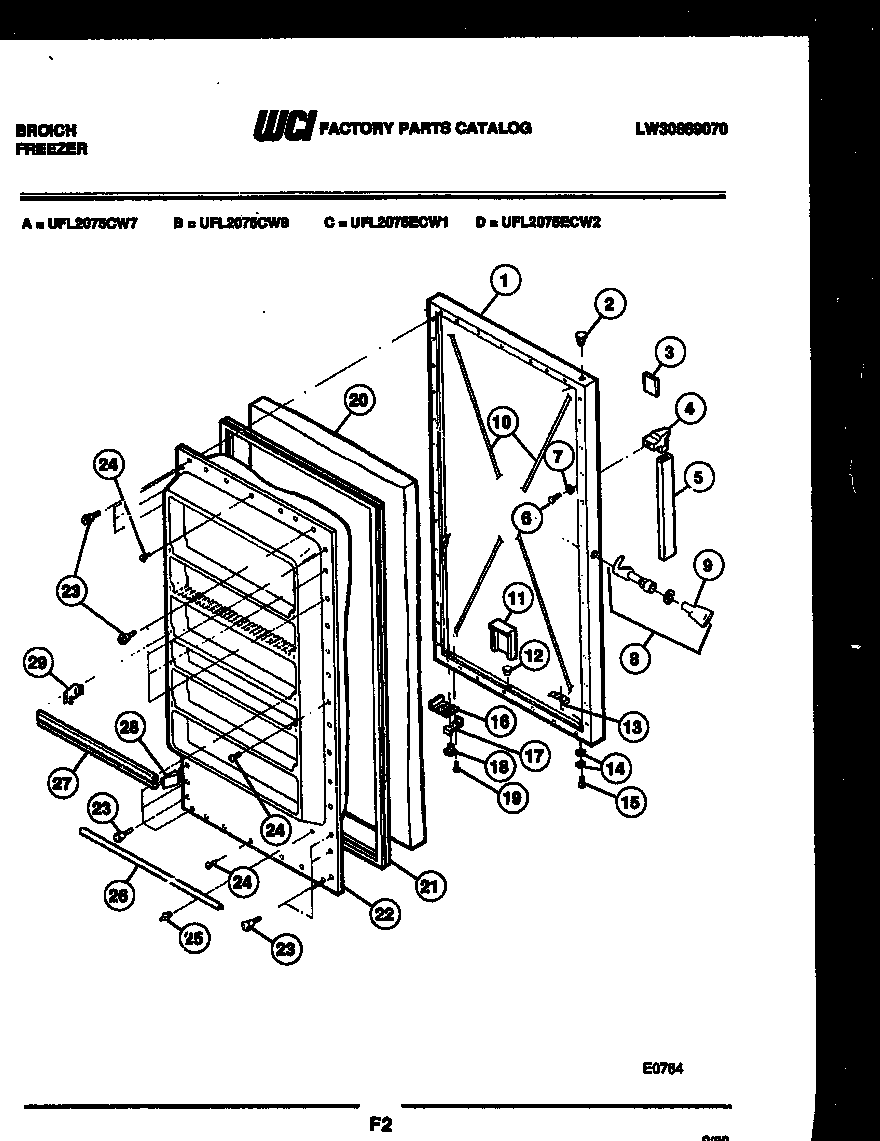

UFL2075CW7 02 – DOOR PARTS

UFL2075CW7 02 – DOOR PARTS

Written by

in

UFL2075CW7 02 – DOOR PARTS

Products

PositionProduct
1WCI 3200946
2WCI F84893
3WCI F120089-3
3WCI 3206042
4WCI F124647
4END CAP, BOTTOM
4WCI 3206043
4WCI 3206044
5HANDLE
5WCI F129803
6131168200 Frigidaire Dryer Screw
7134716700 Frigidaire Washer
8WCI G190358
9297147700 Frigidaire Freezer Plastic Door Key
10WIRE
11AIR DUCT BREATHER
13WCI F57880
14WASHER BRACKET (2)
15SCREW, BRACKET (2)
16BRACKET-DOOR STOP
17WCI F124623
18297006800 Frigidaire Refrigerator Bearing Hinge
19SCREW-STOP
20WCI F116277
21WCI F129797
22INNER PANEL-WHITE
22WCI F124698-93
23SCREW-PANEL
24216858001 Frigidaire Refrigerator Screw
255303212828 Frigidaire Refrigerator Primary Clip
26216036601 Frigidaire Refrigerator Screw
27FRONT SHELF (5)
27WCI 3206054
28WCI F124980
29WCI F124982
