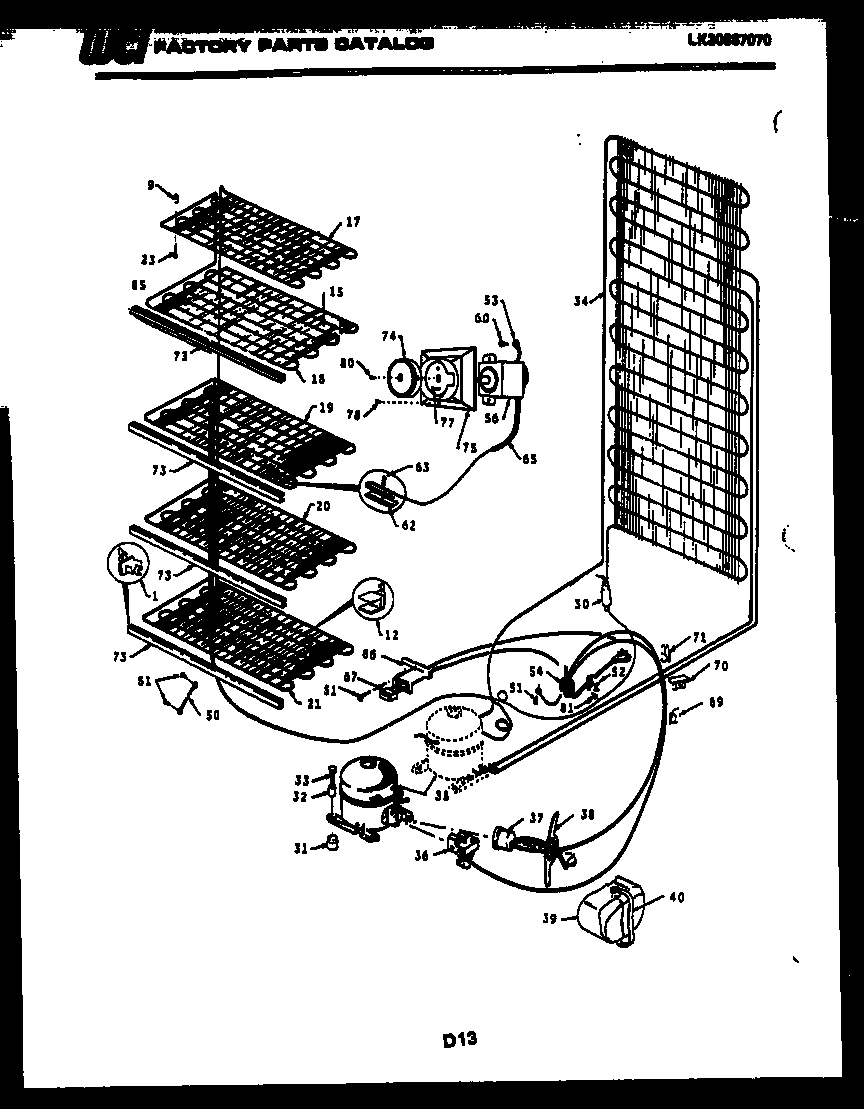

UFP160DM1W 04 – SYSTEM AND ELECTRICAL PARTS

Products

PositionProduct
1297001600 Frigidaire Shelf Support
2SUPT FRONT RH (3)
9SPCR-TOPGRID FRONT (2)
10SPCR-TOP GRID REAR (NON-ILLUSTRATED)
12WCI F117447
15WCI F125249
17WCI F121179
18FIRST SHELF
19WCI F125251
21BOTTOM SHELF
23WCI F126260
305303305677 Frigidaire Replacement Filter Dryer Filters
31216498900 Frigidaire Refrigerator Grommet
32SLEEVE
33WCI F59211
345300123788 Frigidaire Refrigerator Condenser
35COMPRESSOR (NON-ILLUSTRATED)
36WCI F127122
37WCI F128280
39WCI F127119
40WCI F127120
49SHIELD, COLD CONTROL
50WCI F95424
525304455846 Frigidaire Refrigerator Clamp
53WCI F125347
54WCI F128543
56WCI F113633
59WCI F112321
60216036601 Frigidaire Refrigerator Screw
61CAP. CLIP (2)
62WCI F96850
63SCREW-CLAMP
65TUBE
70CLIP
73SHELF TRIM (3)
74FWCI 127717
75WCI F128633
77SCREW CONTROL
78131420300 Frigidaire Screw
80SCREW KNOB
81216858001 Frigidaire Refrigerator Screw
