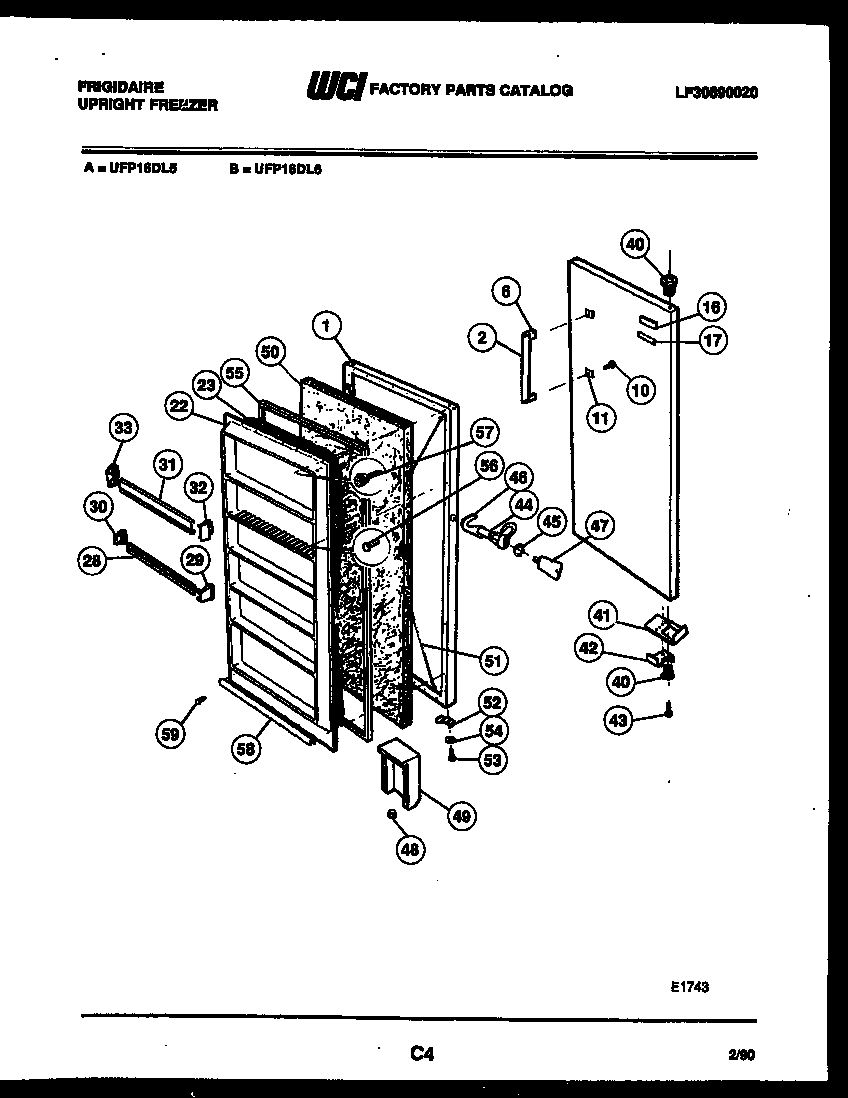

UFP16DL6 02 – DOOR PARTS

Products

Position	Product
1	PANEL-OUTER DR-ALMD
6	WCI 5308016581
7	WCI 3016894
10	SCREW (2)
11	134716700 Frigidaire Washer
16	WCI 08037409
17	WCI 08037949
22	WCI 5308013199
23	WCI 06594525
28	FRONT (4)
29	5303925377 Frigidaire Refrigerator Endcap Kit R & L
31	FRONT (1)
32	END CAP, RH WIDE (3)
33	END CAP LH WIDE (3)
40	297006800 Frigidaire Refrigerator Bearing Hinge
40	WCI 5306593364
41	BRACKET-DOOR STOP
42	WCI 06593882
43	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
44	WCI 5300190358
45	Washer-sealing
46	WCI 3202005
47	297147700 Frigidaire Freezer Plastic Door Key
48	Valve,breather ,door base
49	WCI 5300128421
50	INSULATION-BULK (NON-ILLUSTRATED)
51	WIRE-DOOR ADJUSTMENT
52	WCI 05879859
53	SCREW, BRACKET (2)
54	WASHER, PLAIN, DOOR BRACKET
55	WCI 5308016361
56	216858001 Frigidaire Refrigerator Screw
57	WCI 08009384
58	WCI 5308016356
59	5303212828 Frigidaire Refrigerator Primary Clip
