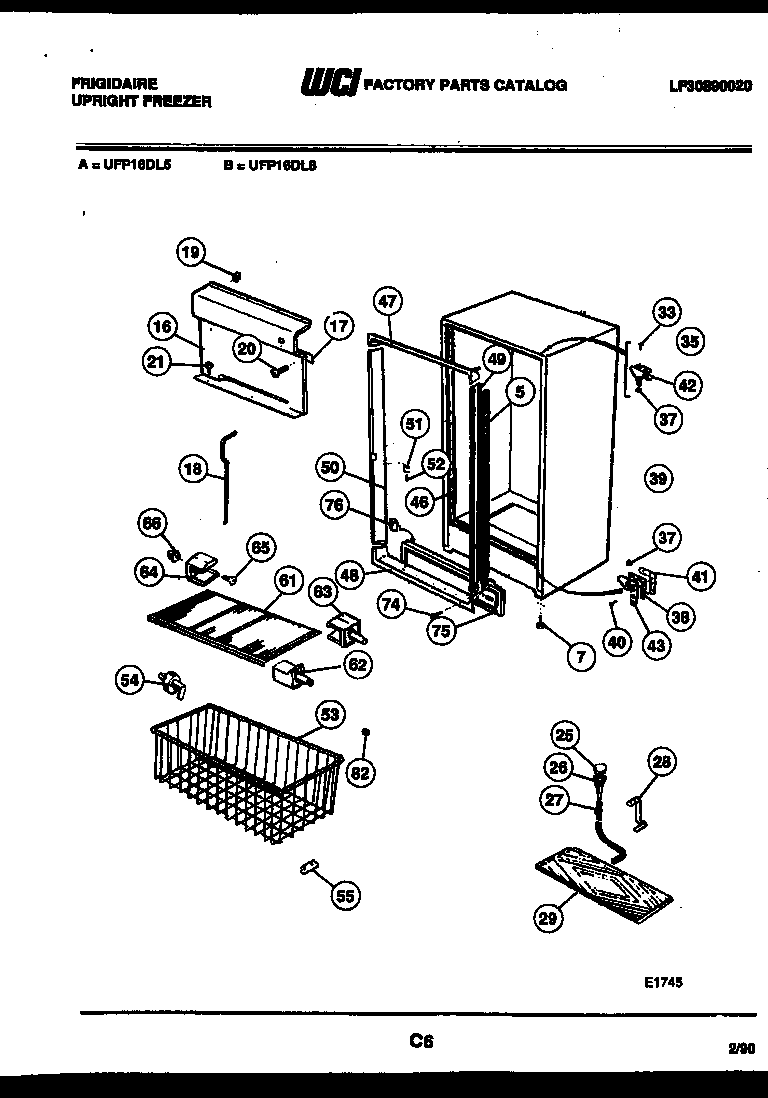

UFP16DL6 03 – CABINET PARTS

Products

Position	Product
5	INSULATION (CUT TO SIZE)
7	SCREW-LEVELING (4)
16	PANEL-EVAPORATOR
17	WCI 06599547
18	WCI 5306599551
19	WCI 09948978
20	216858001 Frigidaire Refrigerator Screw
21	131168200 Frigidaire Dryer Screw
25	216503100 Frigidaire Refrigerator Screen-Drain
26	5304511843 Frigidaire Refrigerator Sleeve
27	5304512272 Frigidaire Hose Drain
28	WCI 06594637
29	WCI 5308016387
33	WCI 06593898
34	WCI 08037848
35	WCI 06593894
37	BEARING, HINGE (3)
38	WCI 08005499
39	CLOSER DOOR
40	154518001 Frigidaire Refrigerator Screw
41	WCI 06594550
42	WCI 5308037946
43A	SPACER-BREAKER (8)
43	WCI 5306594549
46	WCI 06594680
47	BREAKER-TOP
48	BREAKER-BOTTOM
49	BREAKER-HINGE SIDE
50	MOULDING-LOCK
51	WCI 5309949966
52	WCI 530161215
53	5304497658 Frigidaire Refrigerator Basket
54	WCI 09948791
55	08009560 Frigidaire 0 Basket Glide
55A	WCI F129805
61	WCI 08037963
61	SHELF-LOWER (1)
62	WCI 5306594707
62	WCI 5306594706
64	WCI 5306594584
65	WCI F000093064
66	WCI 06594537
74	FASTENER BASE PANEL
75	WCI 08037840
76	WCI 5300118003
82	5305878546 Frigidaire Refrigerator Bumper-Basket
