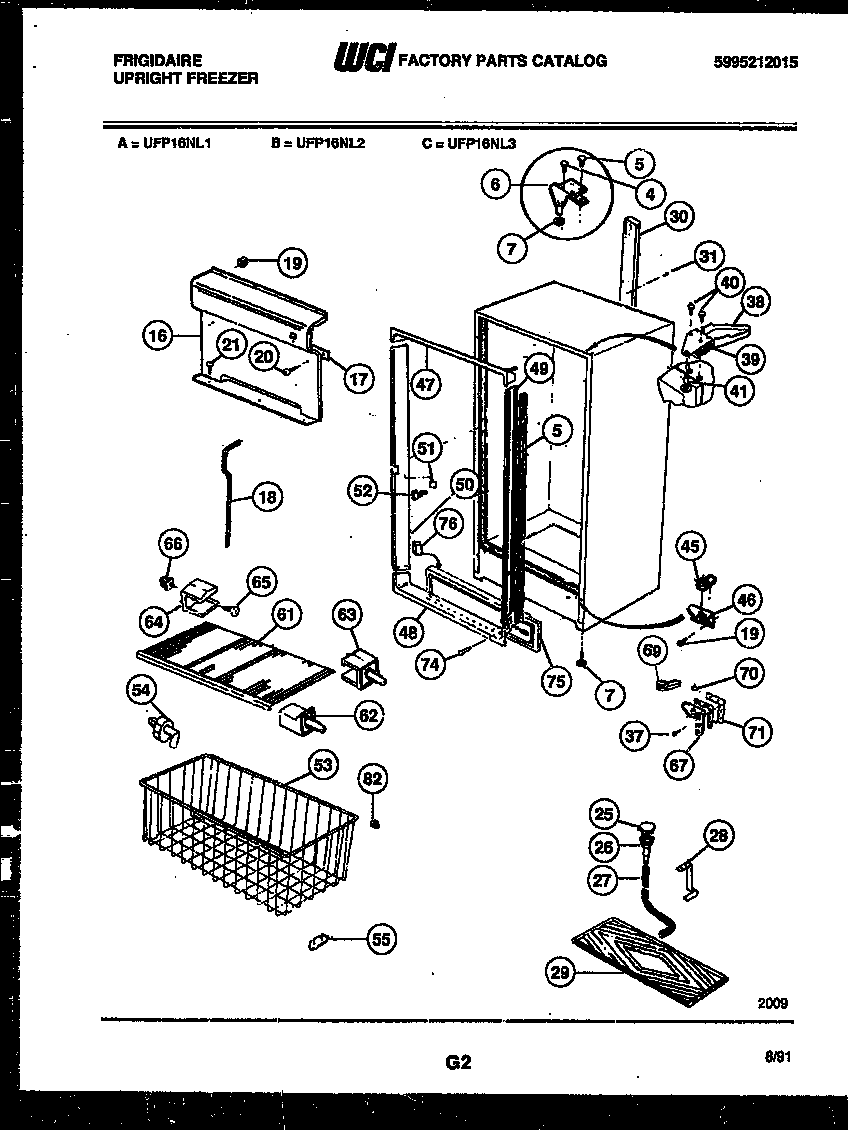

UFP16NL1 03 – CABINET PARTS

Products

Position	Product
5	INSULATION (CUT TO SIZE)
7	SCREW-LEVELING (4)
16	PANEL-EVAPORATOR
17	WCI 06599547
18	WCI 5306599551
19	WCI 09948978
21	131168200 Frigidaire Dryer Screw
25	216503100 Frigidaire Refrigerator Screen-Drain
26	5304511843 Frigidaire Refrigerator Sleeve
27	5304512272 Frigidaire Hose Drain
28	WCI 06594637
29	WCI 5308016387
30	WCI F91583-S
31	WCI 06594661
42	WCI 06593898
43	WCI 08037848
44	WCI 5308037946
46	WCI 06594680
47	BREAKER-TOP
48	BREAKER-BOTTOM
49	BREAKER-HINGE SIDE
50	MOULDING-LOCK
51	WCI 5309949966
52	216858001 Frigidaire Refrigerator Screw
53	5304497658 Frigidaire Refrigerator Basket
54	WCI 09948791
55A	WCI F129805
55	08009560 Frigidaire 0 Basket Glide
61	WCI 08037963
61A	SHELF-LOWER (1)
62	WCI 5306594706
62A	WCI 5306594707
63	WCI 5306594584
64	WCI 5306594585
65	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
67	WCI 5306594549
68	154518001 Frigidaire Refrigerator Screw
69	WCI F000900253
70	WCI 5300057523
71	SPACER
74	FASTENER BASE PANEL
75	WCI 08037840
76	WCI 5300118003
82	5305878546 Frigidaire Refrigerator Bumper-Basket
