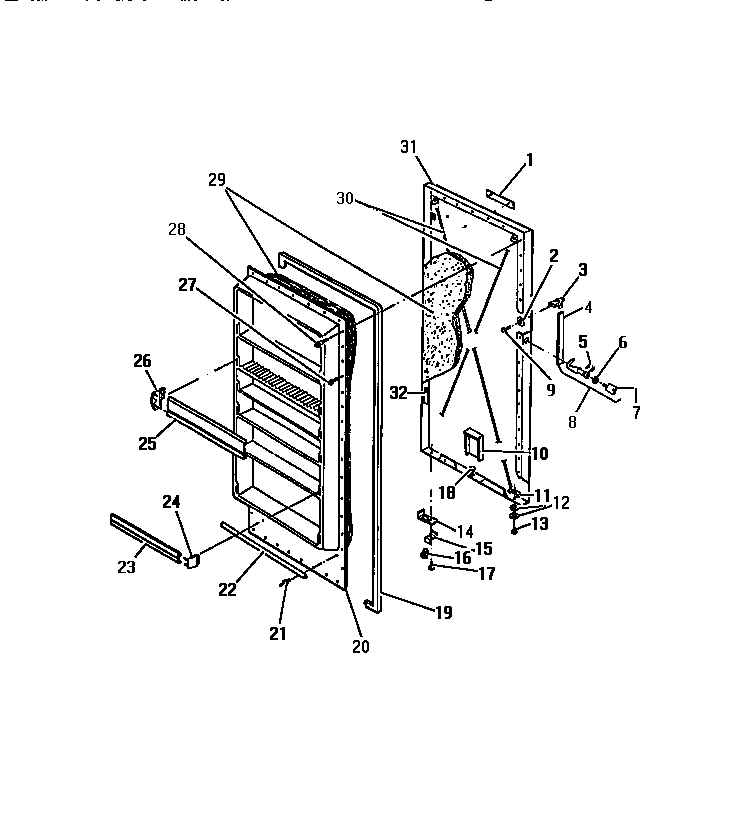

UFP19DL2 10 – FREEZER DOOR PANELS

Products

Position	Product
1	WCI 8009843
2	WCI 6594507
3	WCI 8016581
4	WCI 8016585
5	WCI 9948787
6	WCI 9948648
7	WCI 6599905
8	WCI 6599899
9	WCI 8016582
10	DUCT
11	WCI 5879859
12	WASHERS (2)
13	WCI 5879860
14	WCI 6596414
15	WCI 6593862
16	WCI 6593364
17	WCI 8005520
18	VENT
19	WCI 8016359
20	WCI 8010196
21	CLIP, PANEL AND SEAL RETAINING (20)
22	WCI 8016356
23	FRONT, SHELF, NARROW (4)
24A	INSERT, SHELF FRONT, NARROW, LH (4)
24	INSERT, SHELF FRONT, NARROW, RH (4)
25	FRONT, SHELF, WIDE
26A	INSERT, SHELF FRONT, WIDE, LH (3)
26	WCI 8005539
27	SCREW (4)
28	SCREW (16)
30	WCI 6594514
31	WCI 8016592
