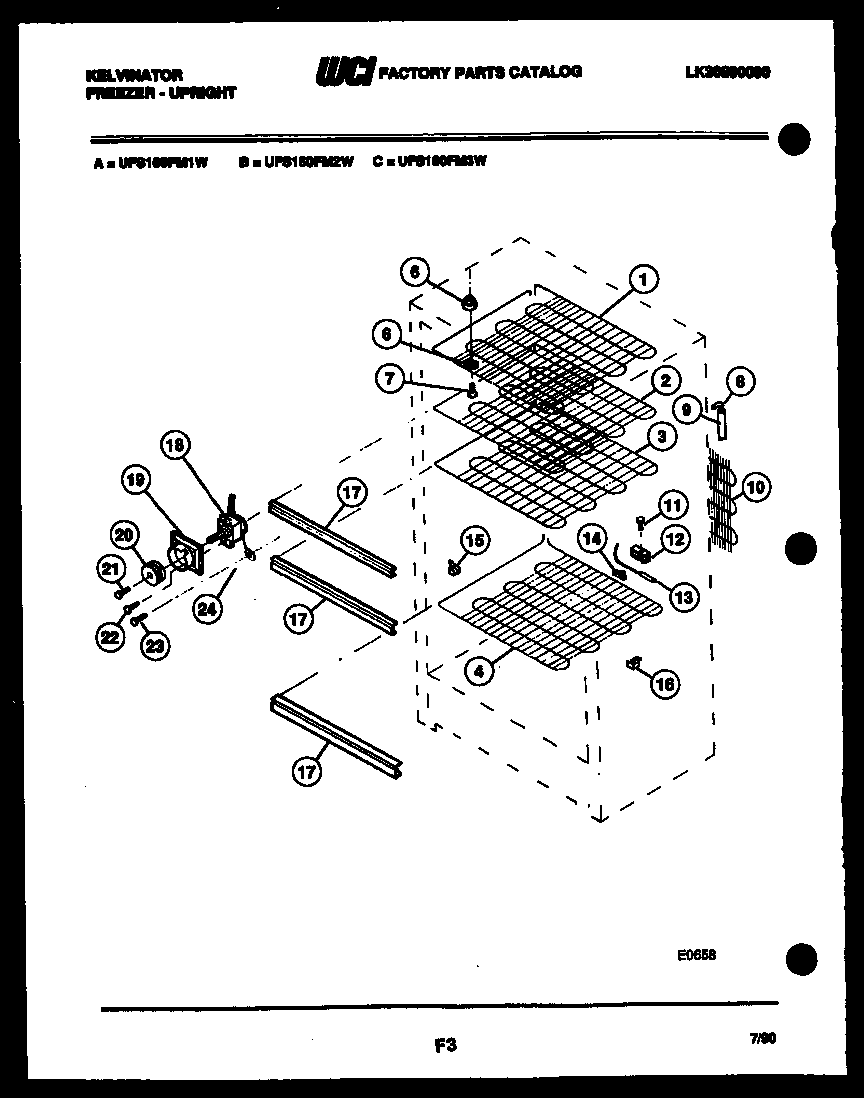

UFS160FM1W 04 – SHELVES AND SUPPORTS

UFS160FM1W 04 – SHELVES AND SUPPORTS

Written by

in

UFS160FM1W 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI F121179
2WCI F129785
3WCI F129807
4WCI F129786
5SPCR-TOPGRID FRONT (2)
6WASHER (3)
7WCI F126260
8WCI F125249
9WCI F58148-58
105300083897 Frigidaire Refrigerator Condenser P1 O/S2
11SCREW-CLAMP
12WCI F96850
13TUBE
14WCI F117447
15297001600 Frigidaire Shelf Support
16297001500 Frigidaire Shelf Support
17SHELF TRIM (3)
18WCI F126974
19WCI F128633
20KNOB, COLD CONTROL
21SCREW KNOB
22131420300 Frigidaire Screw
23SCREW CONTROL
24216036601 Frigidaire Refrigerator Screw
