UG8290 05 – CONTROL PANEL & CONTROLS (WASHER) – Aparts

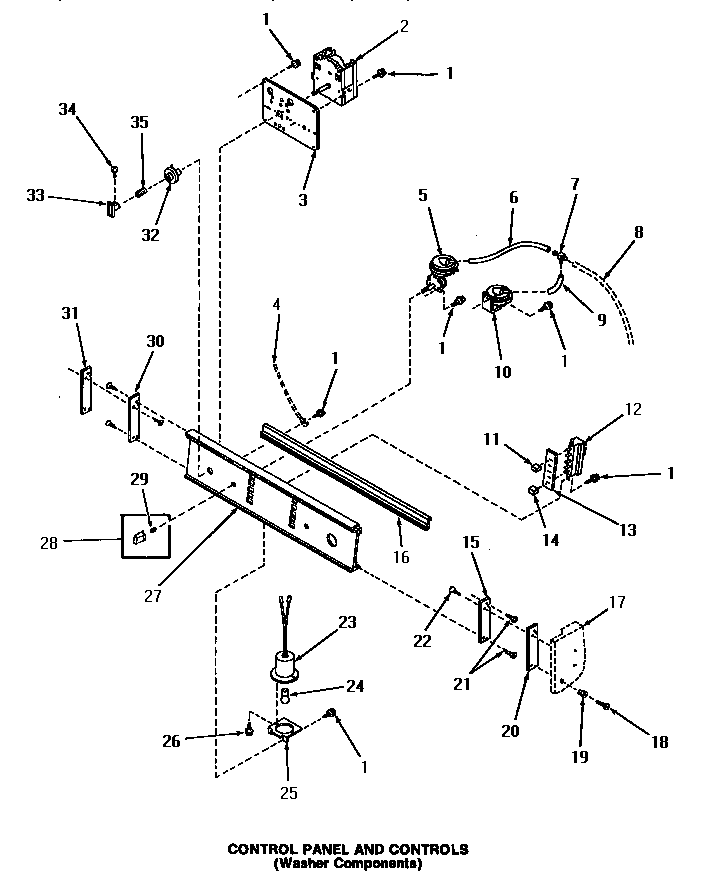

UG8290 05 – CONTROL PANEL & CONTROLS (WASHER)

Products

Position	Product
NI	MAY 30800
1	WP90767 Whirlpool Screw
2	MAY 30125
3	MAY 29808
5	MAY 30150
6	MAY 29880
7	MAY 30138
9	MAY 29869
9	MAY 30809
10	MAY 30149
11	MAY 29910
12	MAY 30107
13	MAY 30039
14	MAY 28778
15	MAY 29857
16	MAY 29855
17	SEE NOTE GROUND WIRE, GREEN
18	MAY 29896
19	MAY 29890
20	MAY 30292
21	MAY 52864
22	MAY 30302
23	MAY 30148
24	MAY Y54608
25	MAY 29809
26	MAY 22145
27	MAY 30170
28	MAY 28124
29	MAY 10519
30	MAY 29858
31	MAY 29856
32	MAY 28287
33	MAY 29912
34	MAY 26318
35	MAY 26319
