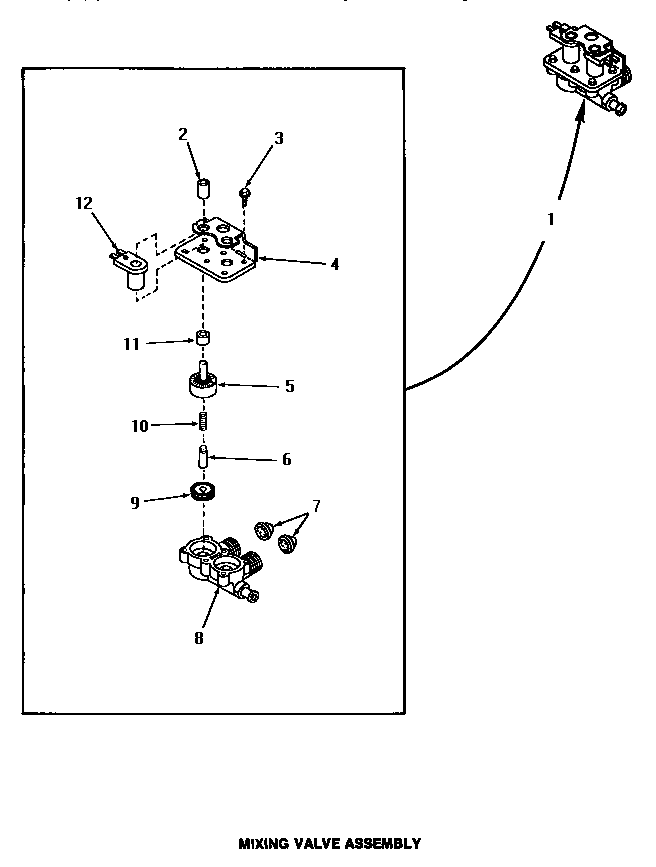

UG8290 14 – MIXING VALVE ASSY
Products
| Position | Product |
|---|---|
| 1 | MAY 27156 |
| 2 | MAY 24128 |
| 3 | MAY 25817C |
| 4 | MAY Y24158 |
| 5 | MAY 24130 |
| 6 | MAY 24132 |
| 7 | MAY 24122 |
| 8 | MAY Y24159 |
| 9 | MAY 24134 |
| 10 | MAY 24131 |
| 11 | MAY 24129 |
| 12 | MAY 24126 |
UG8290 14 – MIXING VALVE ASSY
| Position | Product |
|---|---|
| 1 | MAY 27156 |
| 2 | MAY 24128 |
| 3 | MAY 25817C |
| 4 | MAY Y24158 |
| 5 | MAY 24130 |
| 6 | MAY 24132 |
| 7 | MAY 24122 |
| 8 | MAY Y24159 |
| 9 | MAY 24134 |
| 10 | MAY 24131 |
| 11 | MAY 24129 |
| 12 | MAY 24126 |
