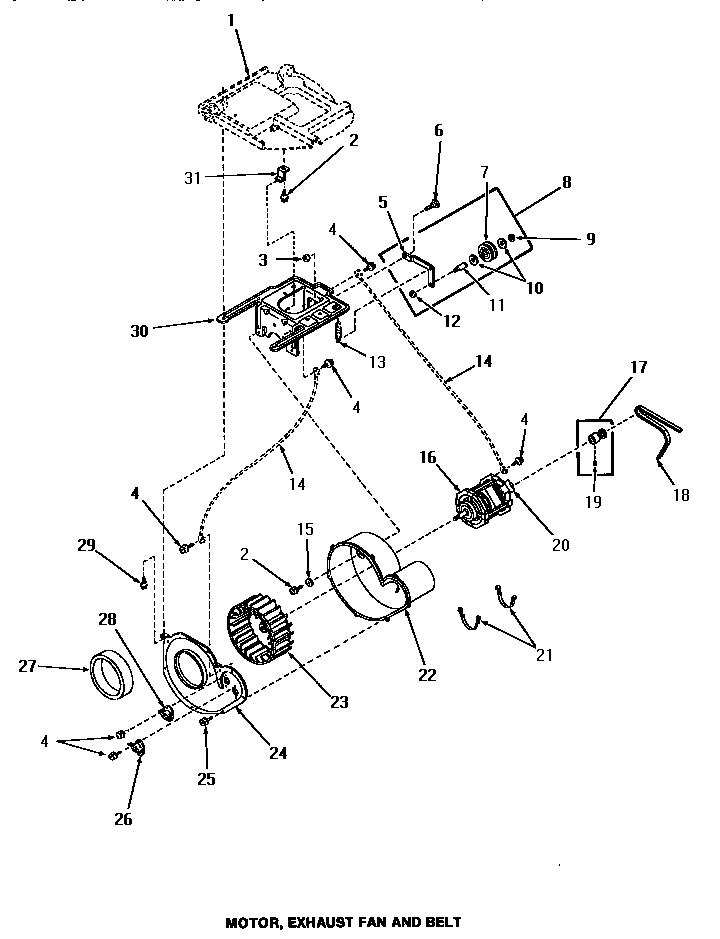

UG8290 15 – MOTOR, EXHAUST FAN & BELT

Products

Position	Product
NI	MAY Y0056157
NI	MAY 56440
2	MAY 56264
3	MAY 52566
4	WP3177991 Whirlpool Screw
5	MAY 56057
6	MAY 56587
7	WPY54414 Whirlpool Dryer Idler Pulley
8	MAY Y56170
9	MAY 23748
10	MAY 52549
11	MAY 56461
12	MAY 56156
13	MAY 56076
14	SEE NOTE GROUND WIRE, GREEN
15	MAY 20492
16	915P3 Speed Queen Alliance Dryer Drive Motor
17	MAY 56133
18	MAY 56095
19	MAY 52906
20	MAY 53249
20	MAY 53226
21	WP660658 Whirlpool Clamp
22	MAY 56020
23	MAY 56000
24	MAY 56059
25	WP90767 Whirlpool Screw
26	MAY 56410
27	MAY 56065
28	MAY 56471
29	MAY 71035
30	MAY Y58045
31	MAY 58776
