UG8290 16 – MOTOR, MTG BRACKET, BELT & IDLER ASSY – Aparts

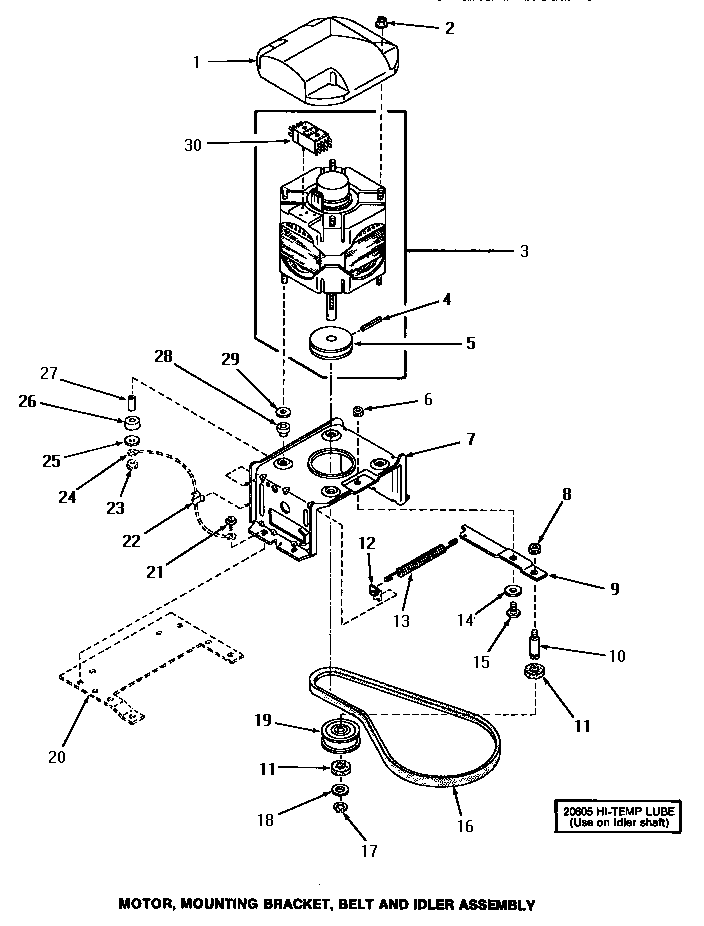

UG8290 16 – MOTOR, MTG BRACKET, BELT & IDLER ASSY

Products

Position	Product
NI	MAY 20606
1	MAY 27136
2	MAY 27201
3	MAY 29892
3	MAY 29733
4	MAY 23750
5	MAY 27171
6	MAY 52566
7	MAY 30308
8	MAY 28803
9	MAY 29705
10	MAY 28802
11	MAY Y29443
12	MAY 28849
13	MAY 28807
14	MAY 81392
15	MAY 27229
16	MAY 28808
17	MAY 23748
18	MAY 52549
19	MAY 28800
21	MAY 26592
22	MAY Y00161
23	MAY 23604
24	SEE NOTE GROUND WIRE, GREEN
26	MAY 01953
27	MAY 27181
28	MAY 01952A
29	MAY 03888
30	MAY 24139
30	MAY 24142
