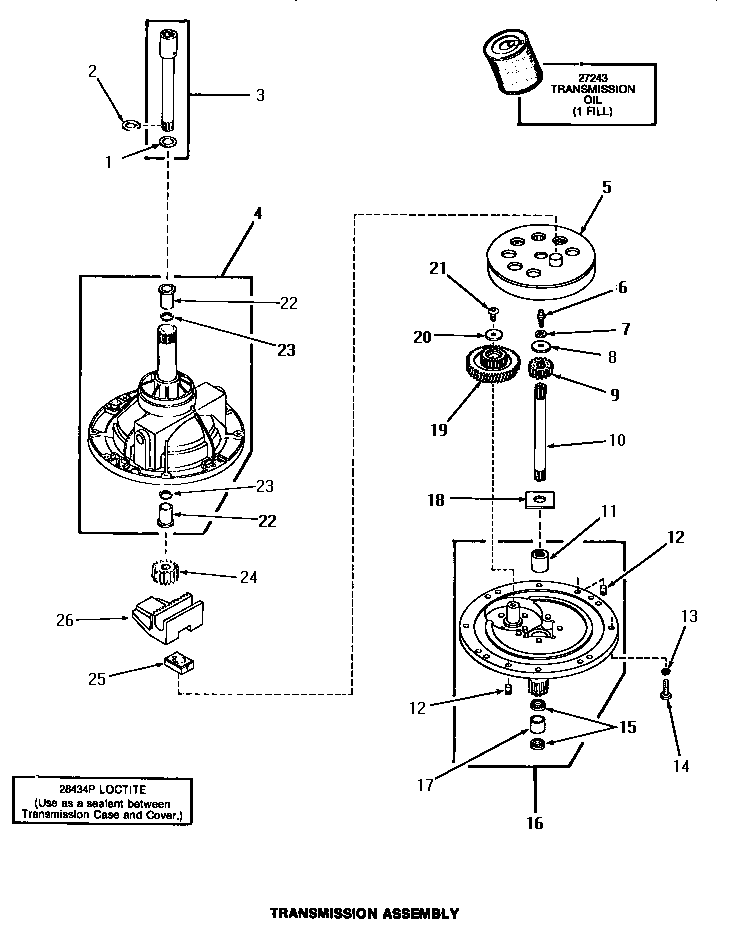

UG8290 27 – TRANSMISSION ASSY

Products

Position	Product
NI	MAY 28434P
NI	MAY 27243
1	SEE NOTE GROUND WIRE, GREEN
2	MAY 27197
3	MAY 368P3
4	MAY 28435
5	MAY 26577
6	MAY 27030
7	MAY 21456
8	MAY 26509
9	MAY Y29160
10	MAY 27081
11	MAY 27026
12	MAY 27172
13	MAY 02431
14	MAY 20253
16	MAY 30122
17	MAY 27022
18	MAY 27016
19	MAY 29161
20	29260 Speed Queen WASHER,FLAT .265X.953X.048
21	MAY 29273
22	MAY 27021
23	MAY Y28114
24	27003 Speed Queen Series Current Relay
25	26493 Speed Queen Slide Assembly
26	MAY Y27001
