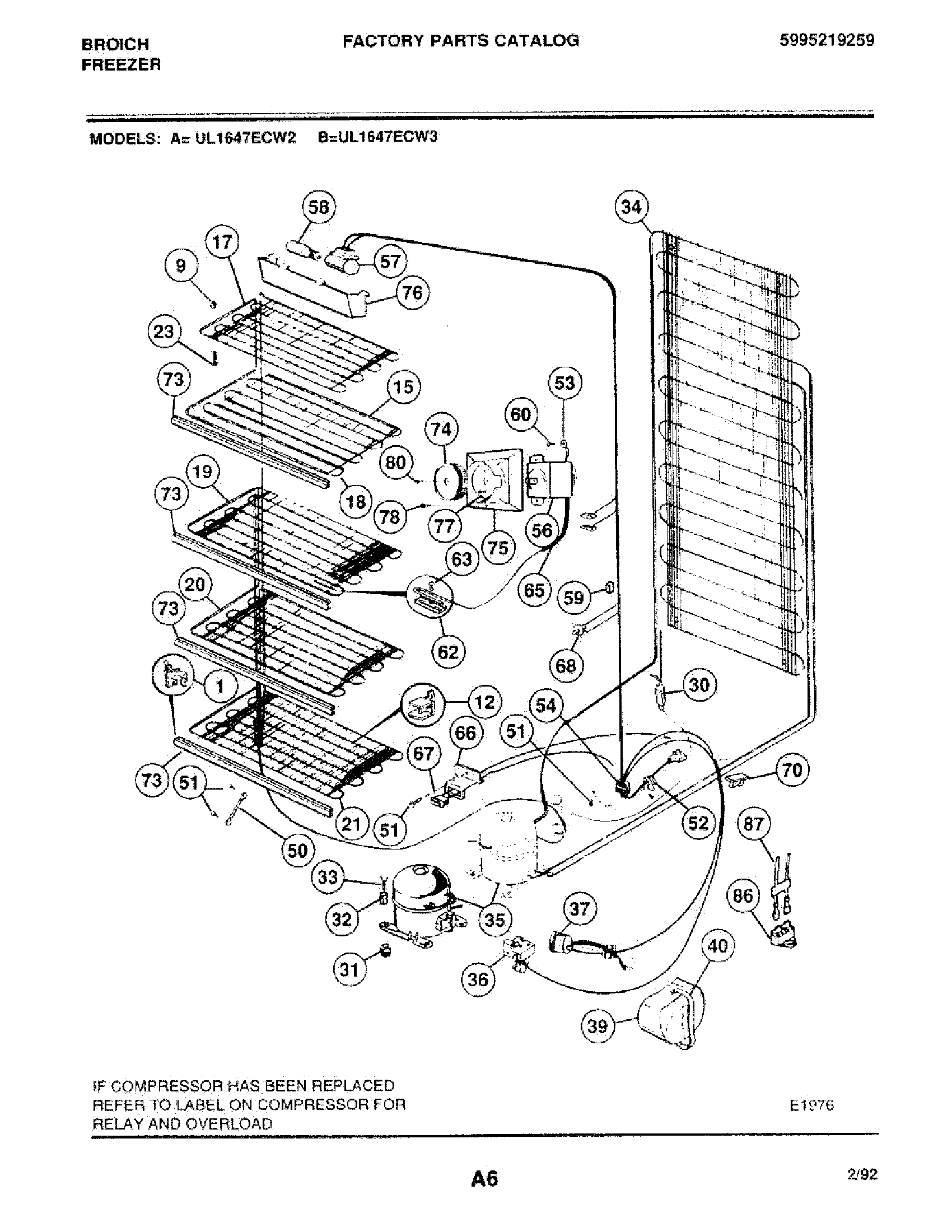

UL1647ECW3 07 – SYSTEM
Written by
in
UL1647ECW3 07 – SYSTEM
Products
Position
Product
1
297001500 Frigidaire Shelf Support
1
297001600 Frigidaire Shelf Support
9
SPACER-REAR
9
SPCR-TOPGRID FRONT (2)
12
WCI 09949960
15
WCI 08010753
17
WCI 5300121179
18
WCI 08037939
19
SECOND SHELF
20
WCI NOT USED
21
BOTTOM SHELF
23
SCREW
30
5303305677 Frigidaire Replacement Filter Dryer Filters
31
216498900 Frigidaire Refrigerator Grommet
32
SLEEVE-COMPRESSOR
33
CREW COMPR MTG
34
5300123788 Frigidaire Refrigerator Condenser
35
COMPRESSOR W/ ELECTRICALS-SERVICE
36
WCI 5303017753
37
WCI 5308037789
40
5303006412 Frigidaire Refrigerator Cover Mounting Strap
50
WCI 06594651
52
5304455846 Frigidaire Refrigerator Clamp
53
WIRE-GROUND, TEMP CONTROL
54
WCI 5303285086
56
WCI 216023000
57
SOCKET, LIGHT/LAMP
58
5304517886 Frigidaire Refrigerator Light
59
RETAINER, WIRE, BREAKER
60
216036601 Frigidaire Refrigerator Screw
62
CLAMP, CAP TUBE, COLD CONTROL
63
SCREW-CAPILLARY CLAMP
65
TUBE
66
BRACKET-SIGNAL LIGHT
67
WCI 06594648
68
5309918806 Frigidaire Refrigerator Light Switch Door
70
WCI 06599553
73
WCI 3206047
74
WCI 216008602
75
HOUSING
76
WCI 3206046
77
SCREW, COVER CONTROL
78
131420300 Frigidaire Screw
80
WCI 09950853
86
CAPACITOR
87
WCI 5303091425
←
