Aparts

UL2030ECW4 07 – SYSTEM

UL2030ECW4 07 – SYSTEM

Written by

in

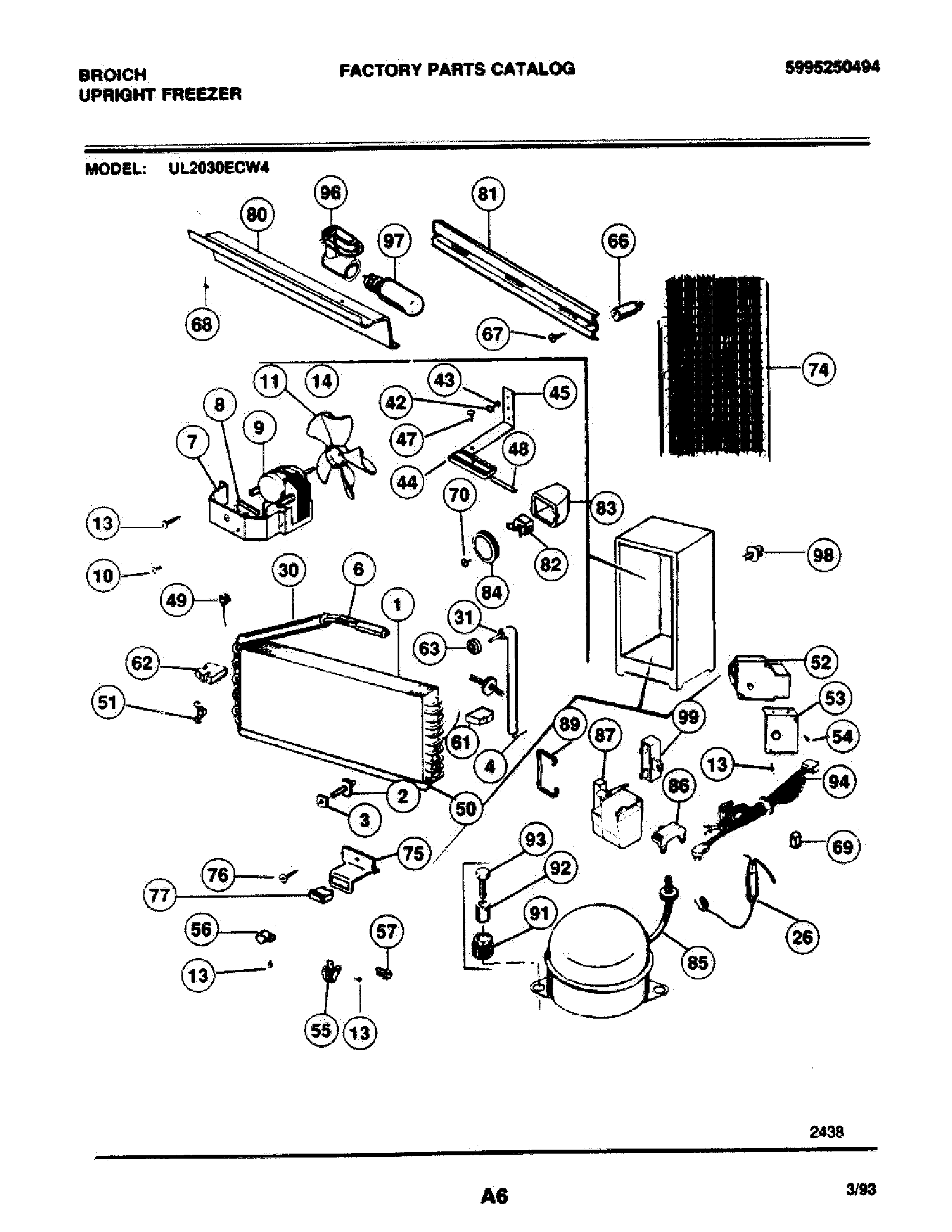

UL2030ECW4 07 – SYSTEM

Products

PositionProduct
WCI 216159200
1WCI 216195900
2WCI 06599544
3WCI 08013198
3WCI 06599546
4WCI 5303207297
4WCI 5303272332
6SLEEVE-EVAPORATOR TUBING (2)
7WCI 08013207
8WCI 5300164002
95304442620 Frigidaire Refrigerator Evaporator Fan Motor
10WCI 5303302760
11WCI 3205520
265303305677 Frigidaire Replacement Filter Dryer Filters
30WCI 06594625
31WCI 09948773
42216036601 Frigidaire Refrigerator Screw
43WCI 5300095480
44WCI 05788562
45WCI 06594601
47SCREW, CLAMP, TRUSS HD CR, CONTROL
48TUBE
49WCI 216254500
50216254600 Frigidaire Refrigerator Defrost Heater
515308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
525304518034 Frigidaire Refrigerator Defrost Timer
53WCI 08016580
54SCREW
555304455846 Frigidaire Refrigerator Clamp
56WCI 5303302761
57WCI 05878556
61WCI 06599531
62WCI 3017674
66WCI 08000456
67216858001 Frigidaire Refrigerator Screw
68WCI 5303283898
69RETAINER, WIRE, BREAKER
70WCI 09950853
745300083897 Frigidaire Refrigerator Condenser P1 O/S2
74WCI 09950610
75WCI 216159800
75WCI 216252001
76WCI 08037851
77WCI 06594648
80WCI 216241606
81WCI 5303288233
82WCI 216303500
83WCI 216230300
84PLUG-INDICATOR
84WCI 216008801
85WCI 216110300
86WCI 216110400
87WCI 216008900
89WCI 215012000
91216498900 Frigidaire Refrigerator Grommet
92SLEEVE-COMPRESSOR
93SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
94WCI 216268300
96SOCKET, LIGHT/LAMP
975304517886 Frigidaire Refrigerator Light
985309918806 Frigidaire Refrigerator Light Switch Door
995304464438 Frigidaire Compressor Run Capacitor
