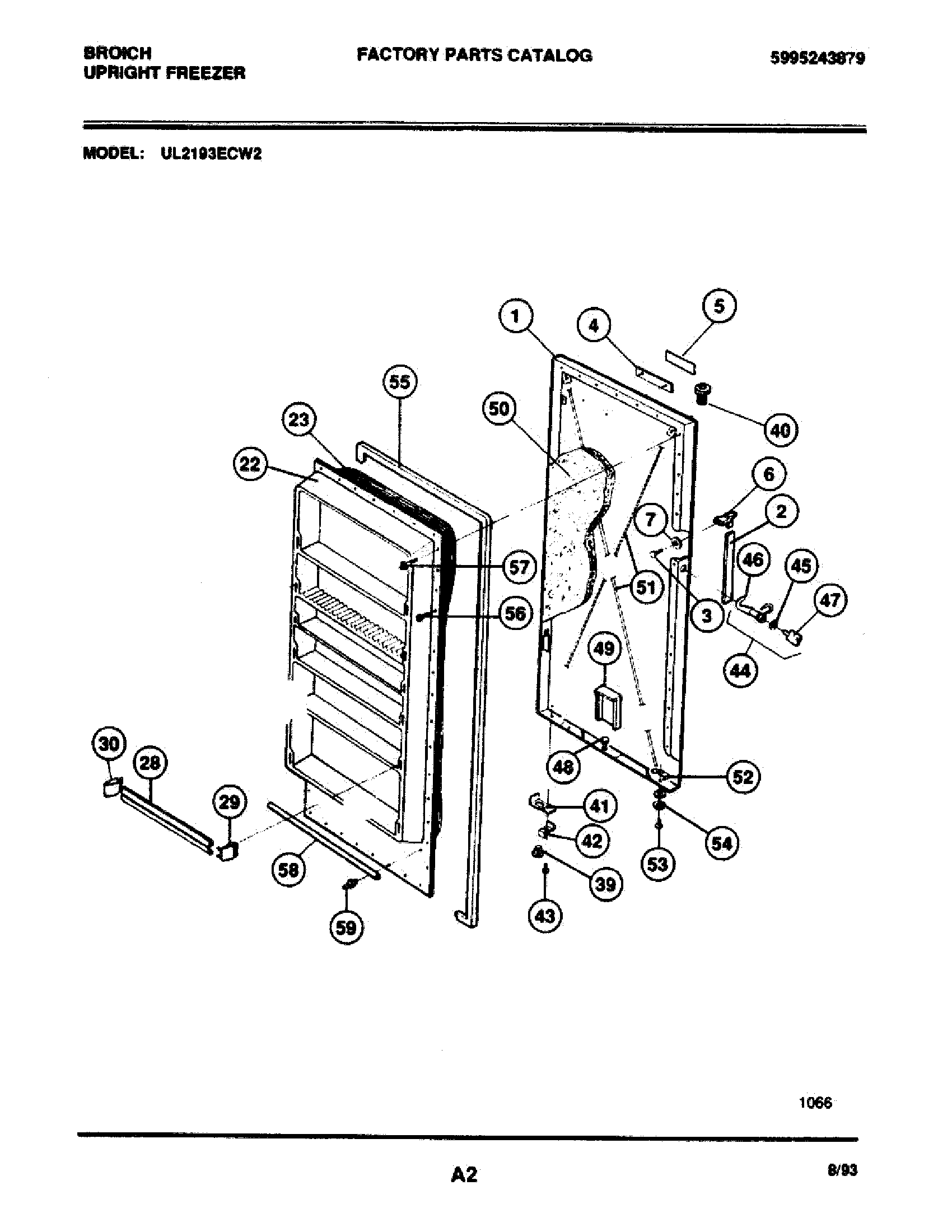

UL2193ECW2 03 – DOOR

Products

Position	Product
1	PANEL-DOOR, WHITE
2	HANDLE- DOOR
3	216858001 Frigidaire Refrigerator Screw
4	FRAME
5	NAMEPLATE
6	END CAP-HANDLE
7	WCI 08016583
10	131168200 Frigidaire Dryer Screw
22	PANE-INNER (WHITE)
23	INSULATION (CUT TO SIZE)
28	SHELF FRONT NARROW (4)
29	5303925377 Frigidaire Refrigerator Endcap Kit R & L
39	297006800 Frigidaire Refrigerator Bearing Hinge
40	WCI 5306593364
41	WCI 5300091170
42	DOOR STOP
43	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
44	WCI 5303925107
45	Washer-sealing
46	WCI 216013800
47	297147700 Frigidaire Freezer Plastic Door Key
48	Valve,breather ,door base
49	WCI 5303212700
50	INSULATION-BULK (NON-ILLUSTRATED)
51	WIRE, DOOR ADJUSTMNT
52	WCI 05879859
53	SCREW
54	WASHER, PLAIN, DOOR BRACKET
57	WCI 216022800
58	WCI 5308016356
59	5303212828 Frigidaire Refrigerator Primary Clip
