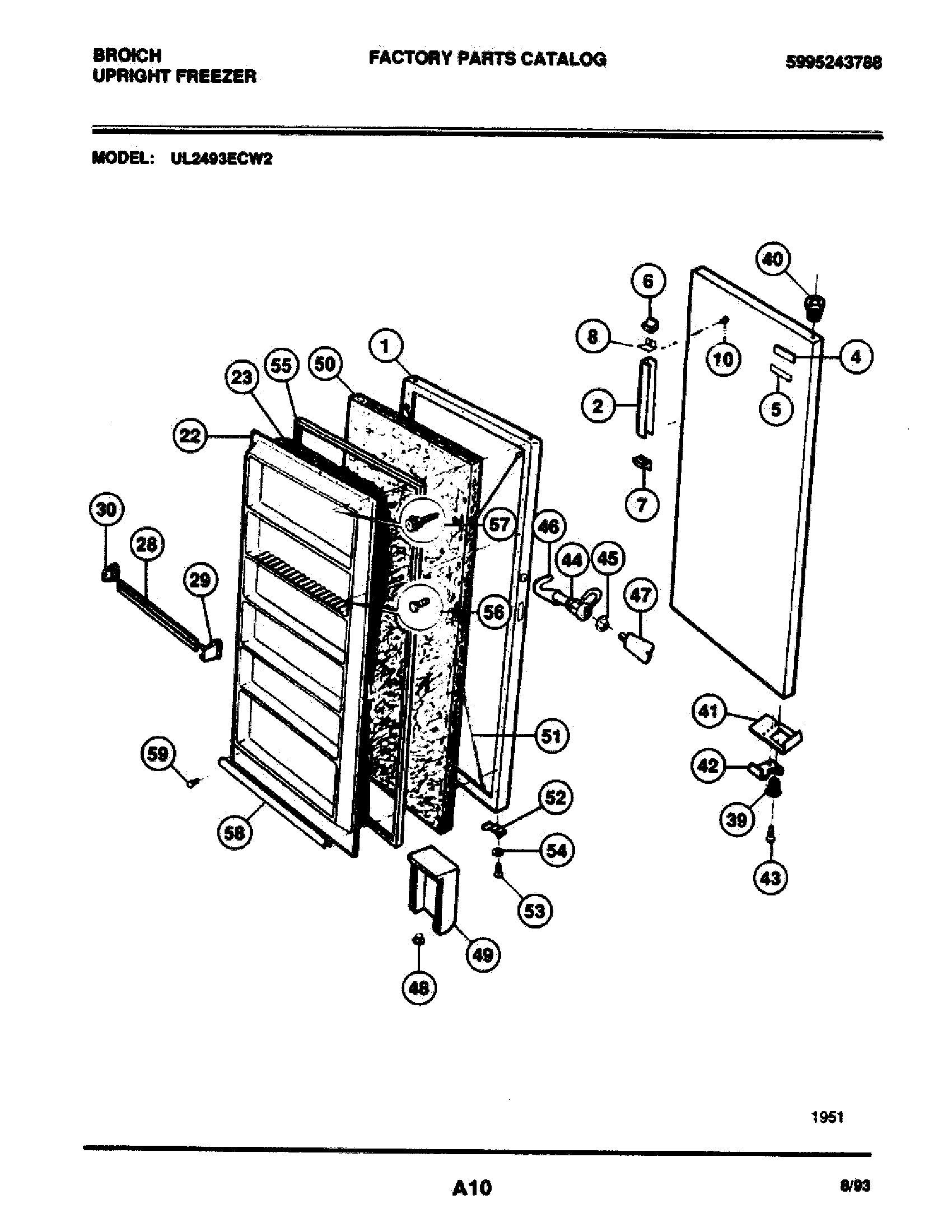

UL2493ECW2 03 – DOOR

Products

PositionProduct
1WCI 216011601
2WCI 3206060
4FRAME
5NAMEPLATE
6WCI 3206043
7WCI 3206044
8WCI 5300119930
8WCI 08016583
10131168200 Frigidaire Dryer Screw
22PANE-INNER (WHITE)
23INSULATION (CUT TO SIZE)
28WCI 216155000
29WCI 5309948970
30WCI 09948971
39297006800 Frigidaire Refrigerator Bearing Hinge
40WCI 5306593364
41WCI 5300091170
42DOOR STOP
43Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
44WCI 5303925107
45Washer-sealing
46WCI 216013800
47297147700 Frigidaire Freezer Plastic Door Key
48Valve,breather ,door base
49WCI 5303212700
50INSULATION-BULK (NON-ILLUSTRATED)
51WIRE, DOOR ADJUSTMNT
52WCI 05879859
53SCREW
54WASHER, PLAIN, DOOR BRACKET
56216858001 Frigidaire Refrigerator Screw
57WCI 216022800
58WCI 5308016356
595303212828 Frigidaire Refrigerator Primary Clip
