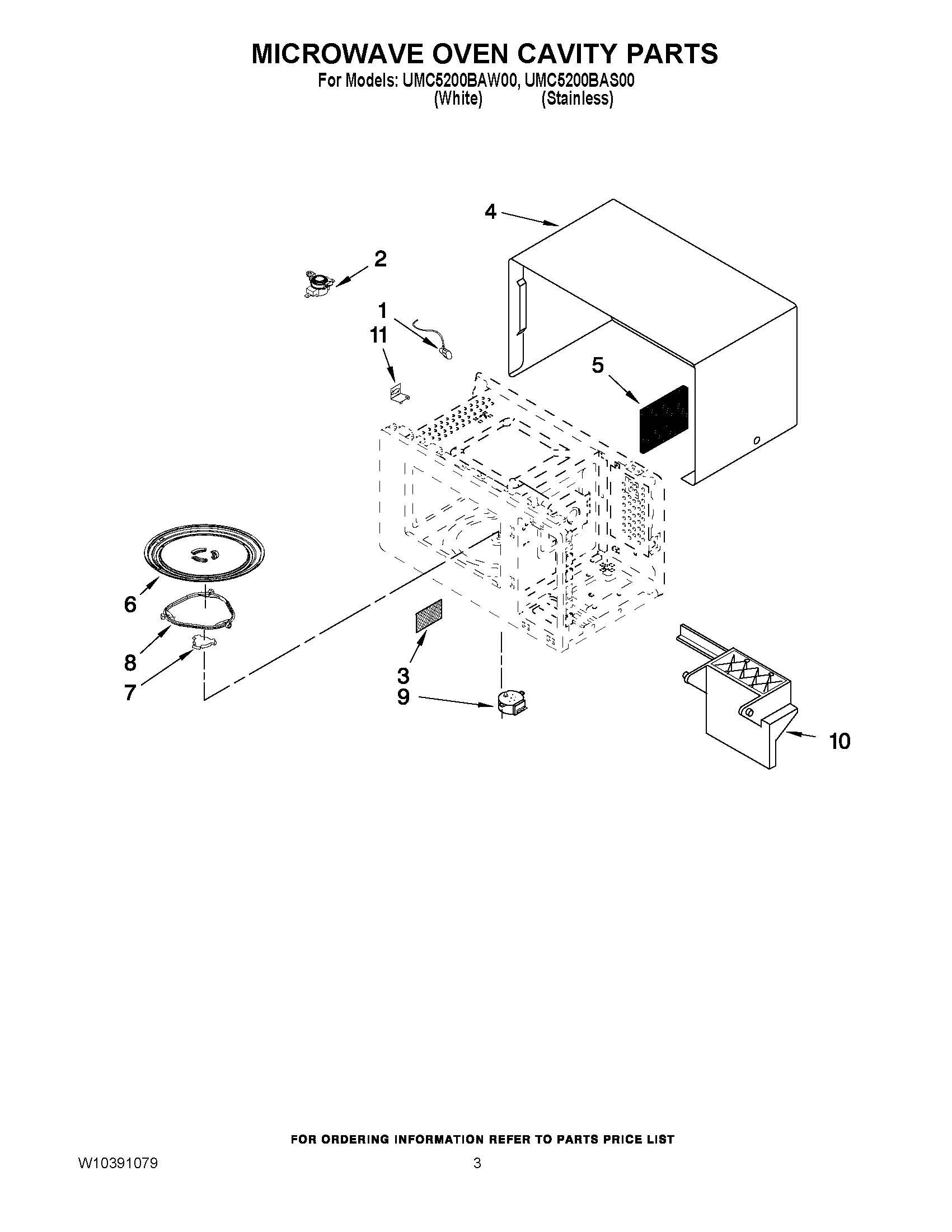

UMC5200BAW00 03 – MICROWAVE OVEN CAVITY PARTS

UMC5200BAW00 03 – MICROWAVE OVEN CAVITY PARTS

Written by

in

UMC5200BAW00 03 – MICROWAVE OVEN CAVITY PARTS

Products

PositionProduct
1SENSOR, HUMIDITY
2THERMOSTAT
3COVER, MGT
4OUTER, CASE (BLACK)
4OUTER, CASE (WHITE)
5CUSHION, RUBBER
6TRAY, GLASS
7SHAFT, TURNTABLE
8RING, TURNTABLE
9MOTOR, DRIVE
10LEVER, DOOR
11BRACKET, SENSOR
