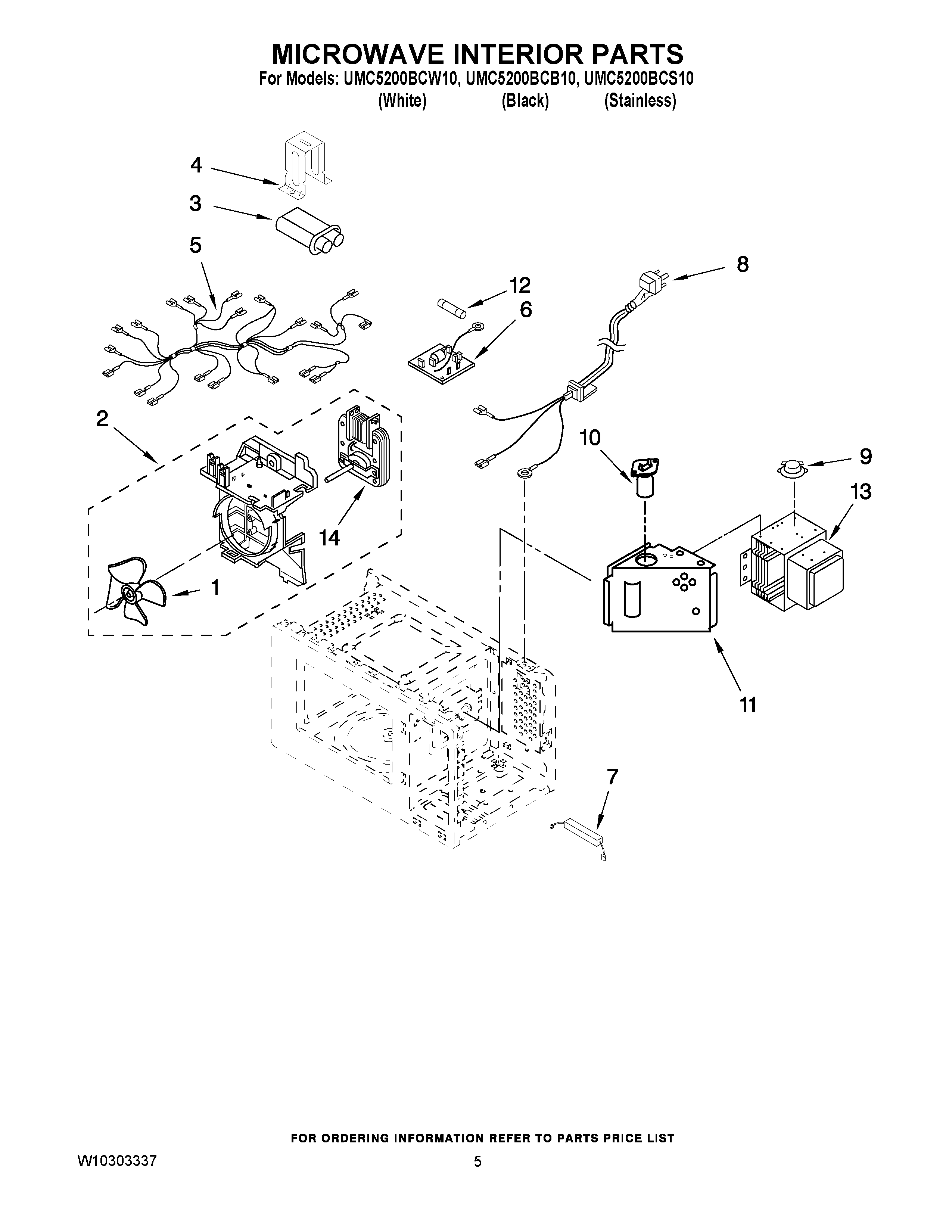

UMC5200BCS10 05 – MICROWAVE INTERIOR PARTS

Written by

Products

Position	Product
1	BLADE, FAN
2	ASSEMBLY, FAN
3	H.V. CAPACITOR
4	H.V.C BRACKET
5	ASSEMBLY, LEADWIRE
6	FILTER, NOISE
7	H.V. DIODE CABLE
8	POWER CORD
9	THERMOSTAT
10	LAMP, BASELESS
11	DUCT, AIR
12	FUSE
13	WPW10126794 Whirlpool Microwave Magnetron
14	MOTOR, FAN
