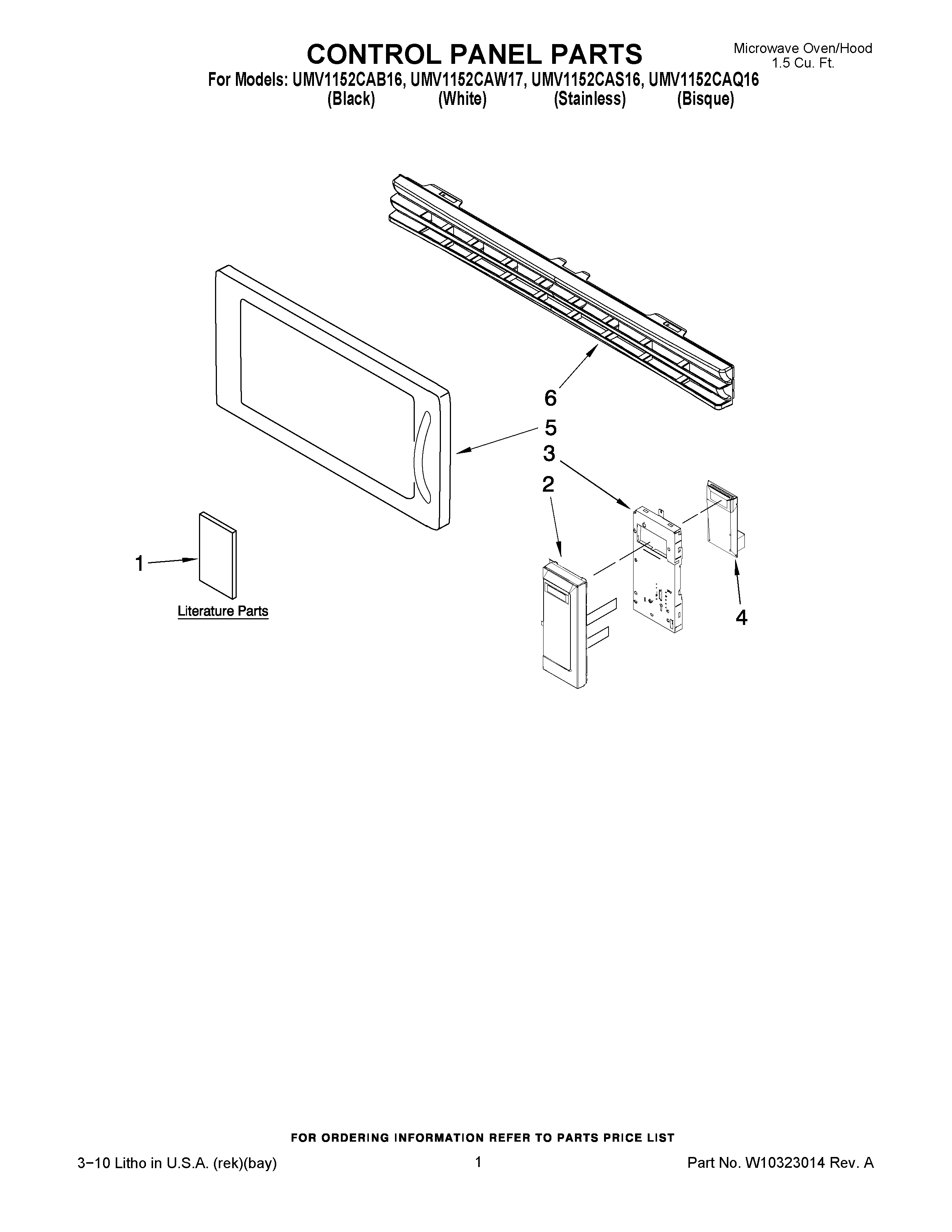

UMV1152CAQ16 01 – CONTROL PANEL PARTSadmin2025-04-26T12:56:25+00:00UMV1152CAQ16 01 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | U & C GUIDE |
| 1 | TECH SHEET, SLIM |
| 2 | PANEL ASY, CONTROL MEMBRANE, LENS AND BRACKET (BISQUE) |
| 2 | PANEL ASY, CONTROL MEMBRANE, LENS AND BRACKET (STAINLESS) |
| 2 | PANEL ASY, CONTROL MEMBRANE, LENS AND BRACKET (WHITE) |
| 2 | PANEL ASY, CONTROL MEMBRANE, LENS AND BRACKET (BLACK) |
| 3 | BRACKET, CONTROL |
| 4 | MICROCOMPUTER |
| 5 | COMPLETE DOOR (STAINLESS) |
| 5 | COMPLETE DOOR (BISQUE) |
| 5 | COMPLETE DOOR (WHITE) |
| 5 | COMPLETE DOOR (BLACK) |
| 6 | GRILLE ASSEMBLY (STAINLESS) |
| 6 | GRILLE ASSEMBLY (WHITE) |
| 6 | GRILLE ASSEMBLY (BISQUE) |
